📊 Basic Information
Application
Home, Industrial, Commercial
Specification
Normal, 5KW Off Grid
Product Name
5kw off Grid Solar System
Output Voltage
110/120/220/230/240V
Battery
12V 200ah Gel Type
Inverter
5kVA with MPPT 60A
📦 Packaging & Delivery
Package Size
212.00cm * 105.20cm * 4.00cm

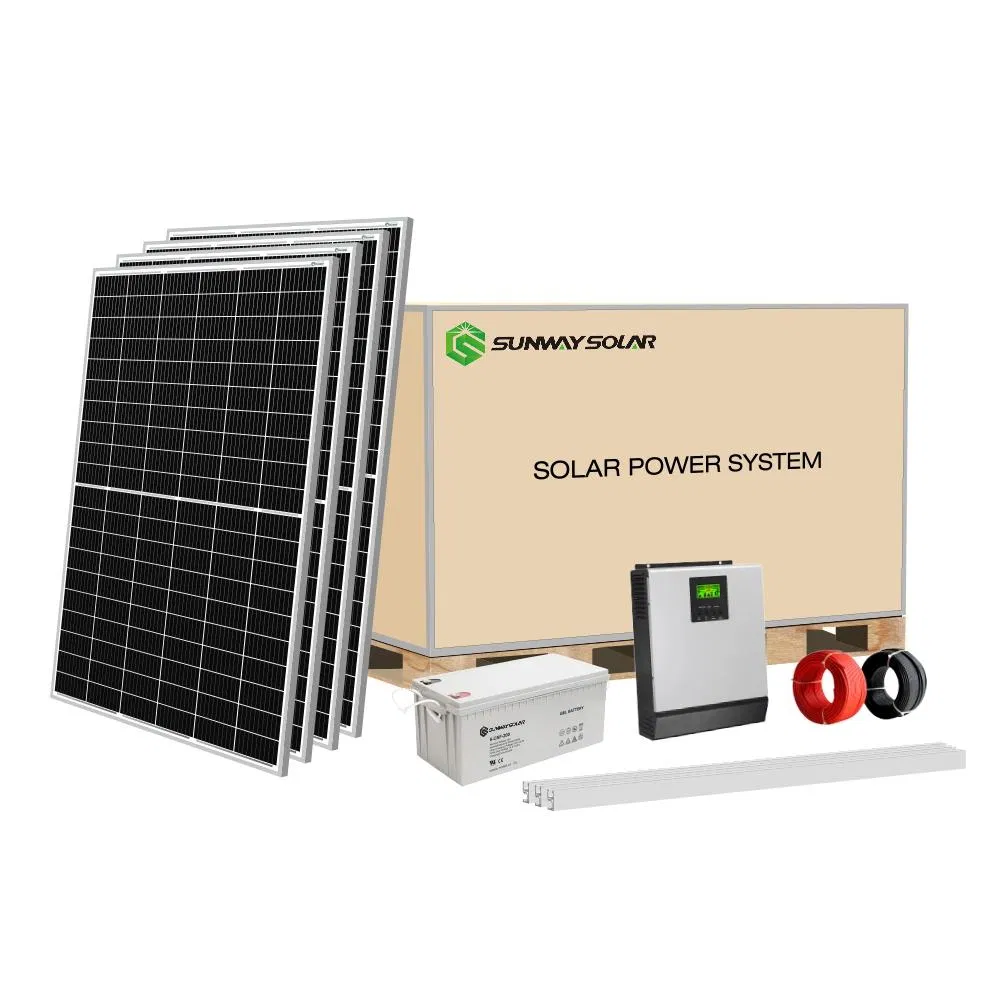

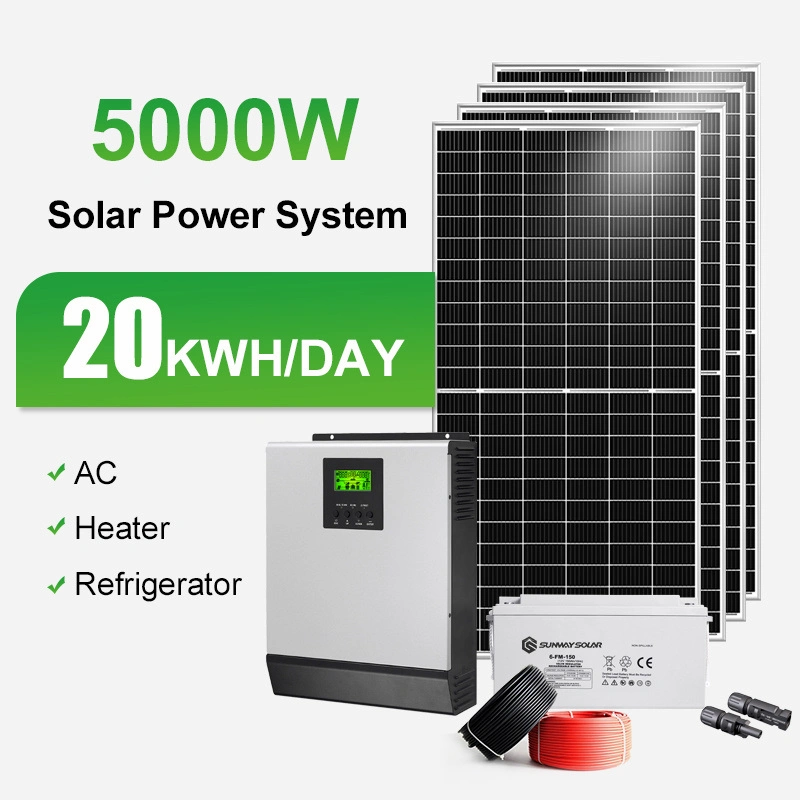

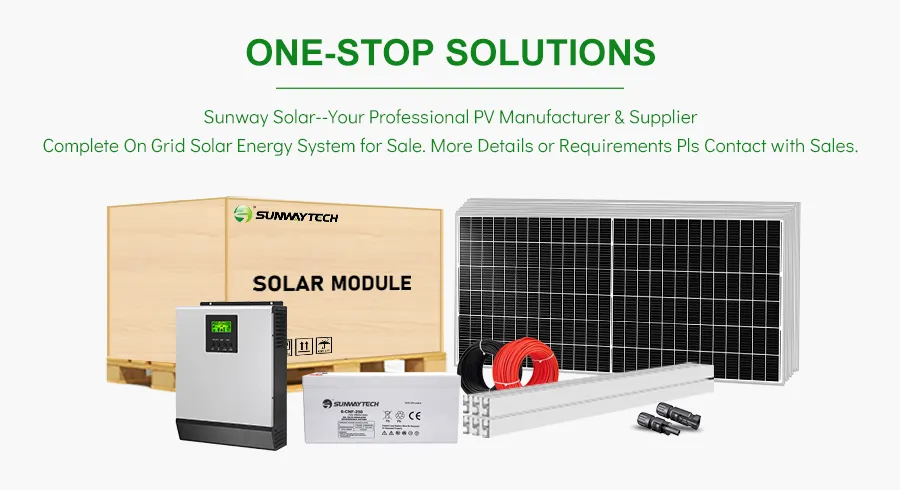

💡 5Kw Solar Power Systems

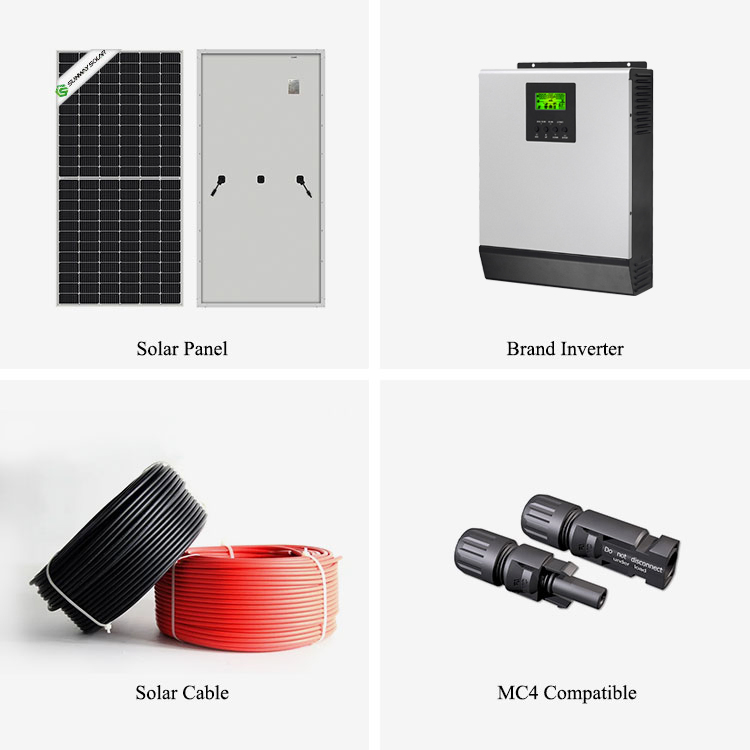

| Components |
SW1KW-OFF |
SW2KW-OFF |
SW3KW-OFF |
SW4KW-OFF |
SW5KW-OFF |
| 300W Mono Solar Panel |
2 Pieces |
4 Pieces |
6 Pieces |
9 Pieces |
12 Pieces |
| Combiner Box |
2 in 1 out |
2 in 1 out |
2 in 1 out |
3 in 1 out |
4 in 1 out |
| Off Grid Inverter |
1kw |
2kw |
3kw |
4kw |
5kw |
| 12V 200AH GEL Battery |
1 Piece |
2 Pieces |
4 Pieces |
4 Pieces |
8 Pieces |
| DC Cable |
100 Meters |
100 Meters |
200 Meters |
200 Meters |
200 Meters |
| MC4 Connector |
4 Pairs |
4 Pairs |
6 Pairs |
6 Pairs |
8 Pairs |
| Mounting System |
Ground or Roof (Customized Optional) |

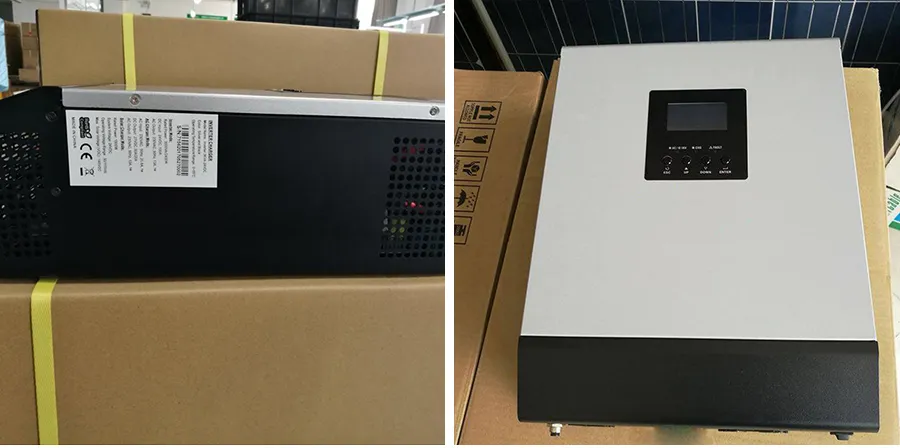

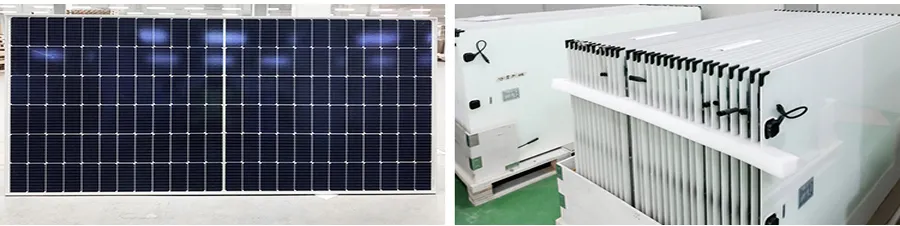

📦 Product Packaging

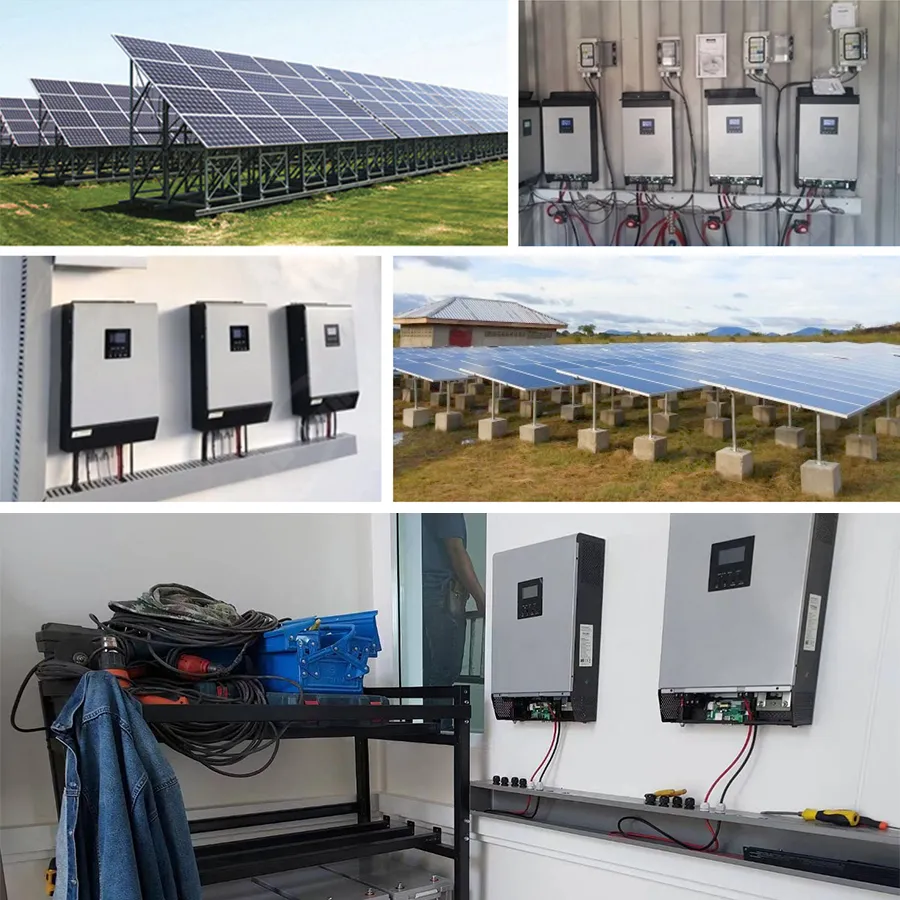

🏠 Application

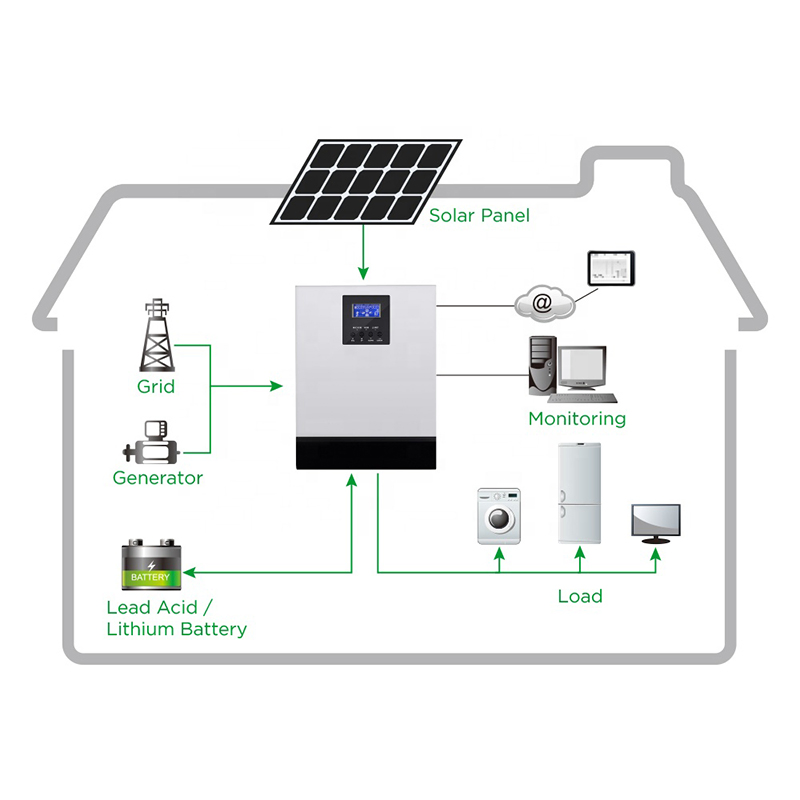

Off-grid solar systems operate from the stored energy in a battery bank. Solar panels are used to keep the battery bank charged. Your off-grid solar system has to be sized properly to meet your daily power needs and replace the stored energy pulled from the battery bank.
While off-grid systems are typically used in remote areas, decreasing battery costs are making them increasingly popular in urban environments.

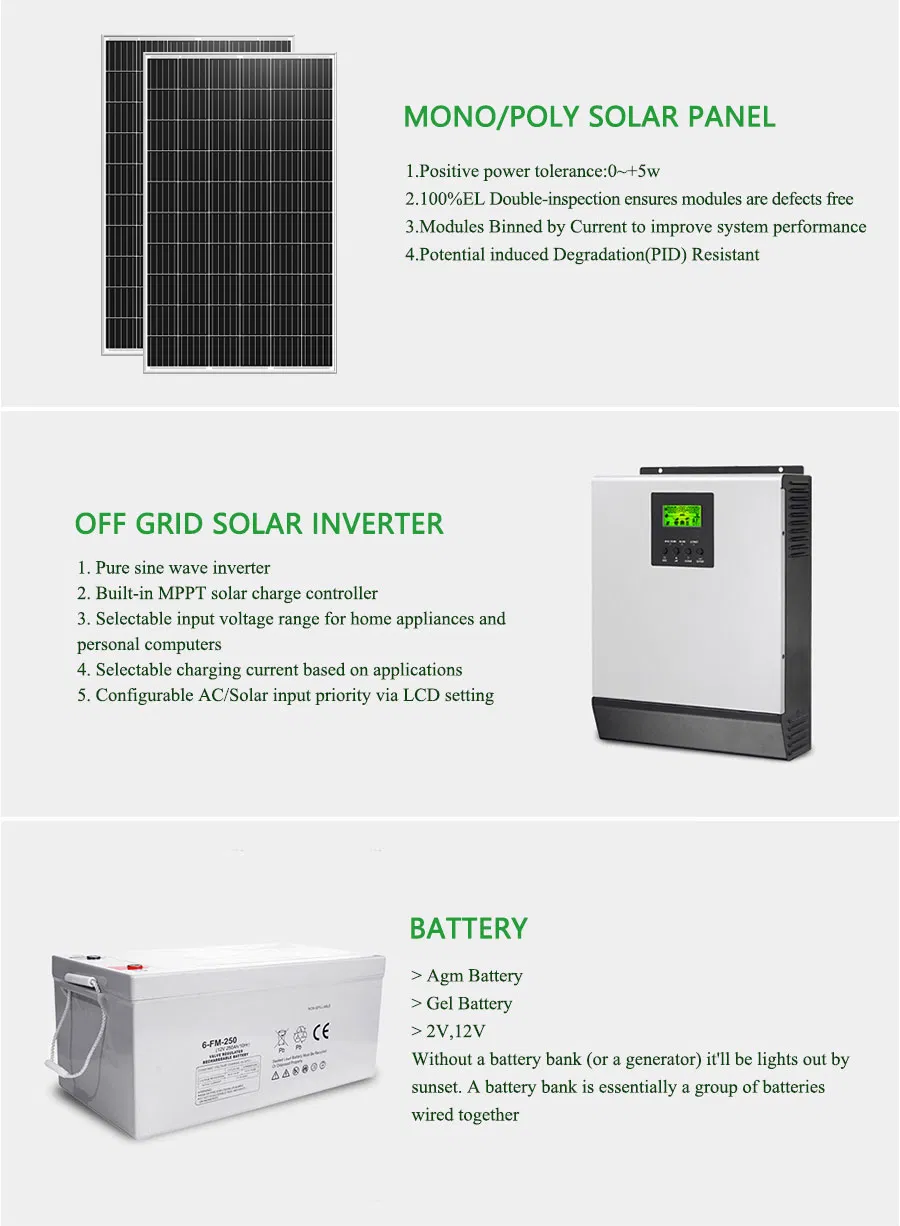

☀️ MONO/POLY SOLAR PANEL
- Positive power tolerance: 0~+5w
- 100% EL Double-inspection ensures modules are defect-free
- Current binned to improve system performance
- PID Resistant

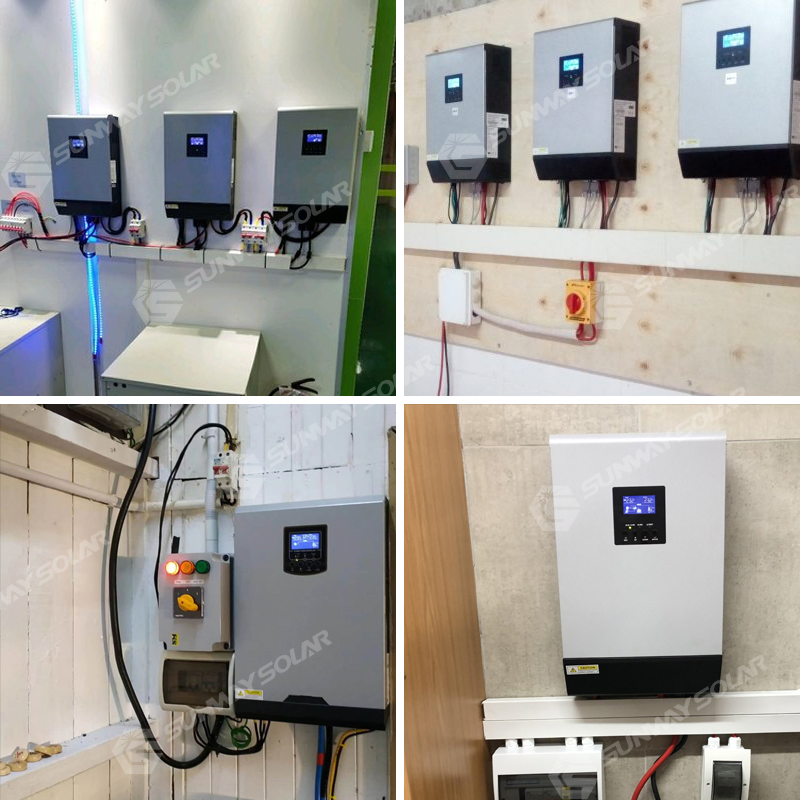

🔄 OFF GRID SOLAR INVERTER
- Pure sine wave inverter
- Built-in MPPT solar charge controller
- Selectable input voltage range
- Configurable AC/Solar input priority via LCD
🔋 BATTERY BANK
- Agm & Gel Battery options
- 2V, 12V configurations
- Essential for night-time power supply
⚡ PV COMBINER BOX
- IP65 Rating
- Rated Voltage: 1000VDC
- Input cable terminal: 4-6mm2
🏗️ MOUNTING STRUCTURE
- Pitched & Flat Roof solutions
- Ground & Vertical wall mounting
- Full aluminum or car parking structures
❓ Frequently Asked Questions
Q1: How much energy can a 5KW off-grid solar system produce daily?
A: On average, a 5KW system can produce between 15kWh to 25kWh per day, depending on the sunlight intensity and geographic location.
Q2: Can I run an air conditioner on this 5KW system?
A: Yes, a 5KW system is capable of running a standard energy-efficient air conditioner along with other household appliances like lights, fans, and refrigerators.
Q3: How long will the batteries last during the night?
A: With the 8 pieces of 12V 200Ah batteries included in the 5KW set, the backup time depends on your load. For moderate use, it can easily cover night-time requirements.
Q4: Is the mounting system compatible with both tile and metal roofs?
A: Yes, our mounting structures are customized. We provide specific brackets for residential pitched roofs (tile or metal), flat roofs, and ground installations.
Q5: What is the lifespan of the solar panels and inverter?
A: Solar panels typically have a performance lifespan of 25 years. The off-grid inverter and other electronic components generally last 5-10 years before requiring maintenance or replacement.
Q6: Does the system work on cloudy or rainy days?
A: Solar panels still produce electricity on cloudy days, though at a reduced rate. The system relies on the energy stored in the battery bank to maintain power during periods of low sunlight.
