Basic Information
Lamp Body Material
Aluminum Alloy
Color Temperature
Cool White, Warm White, Pure White
About Our Technology
Founded in 2005, our national high-tech enterprise is dedicated to solar energy and outdoor lighting. We integrate innovation, manufacturing, and complete solutions to drive sustainable development. Our focus covers high-efficiency PV modules, residential solar systems, and commercial solar power plants. Over the past decade, we have grown into a full-solution provider, delivering R&D, engineering, and installation services worldwide. With more than 100 patents, we continue to advance solar and lighting technology.
Product Description

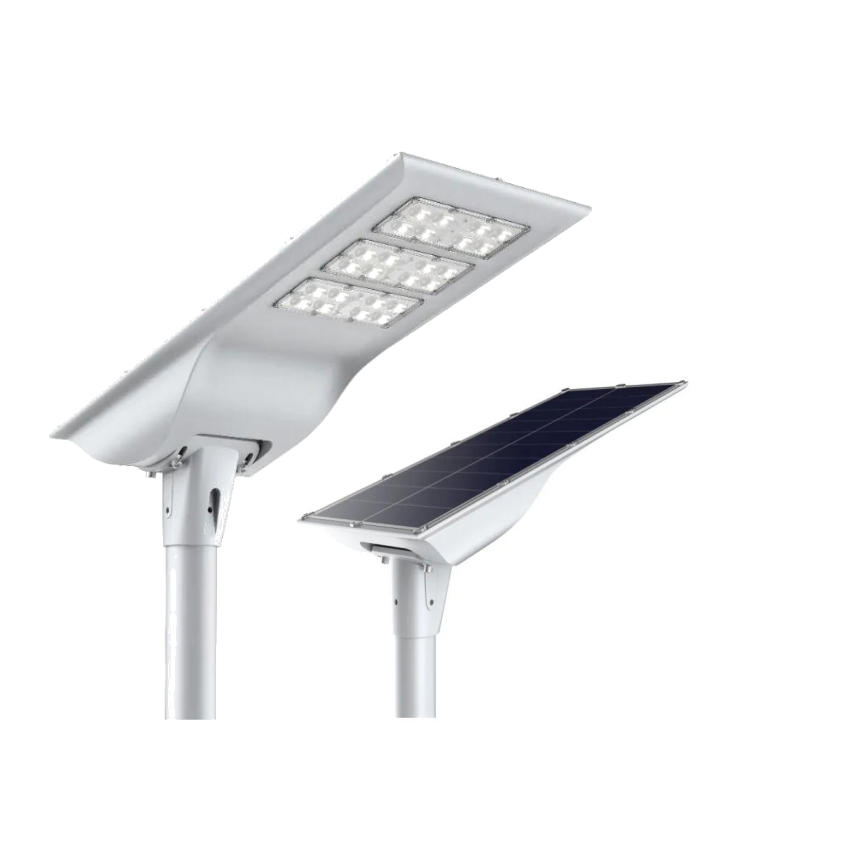

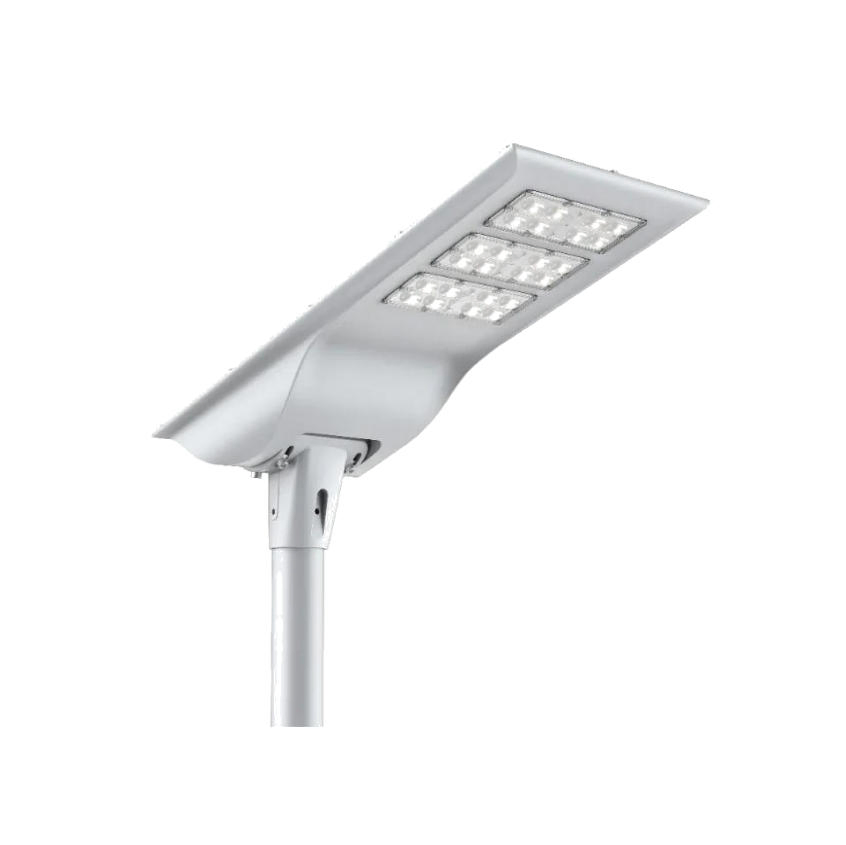

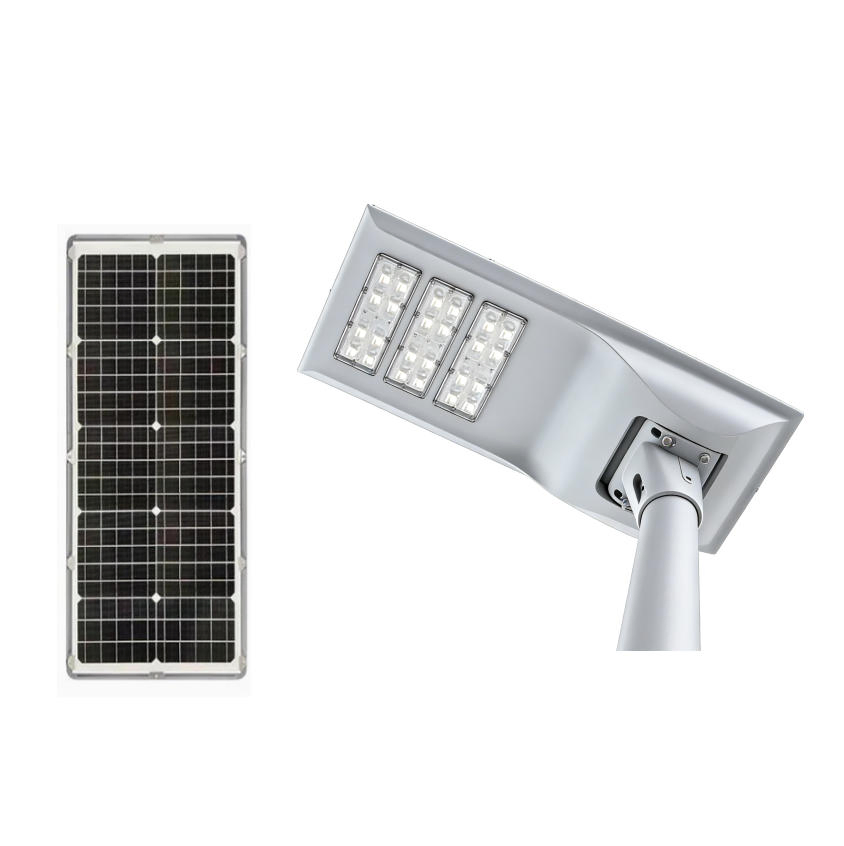

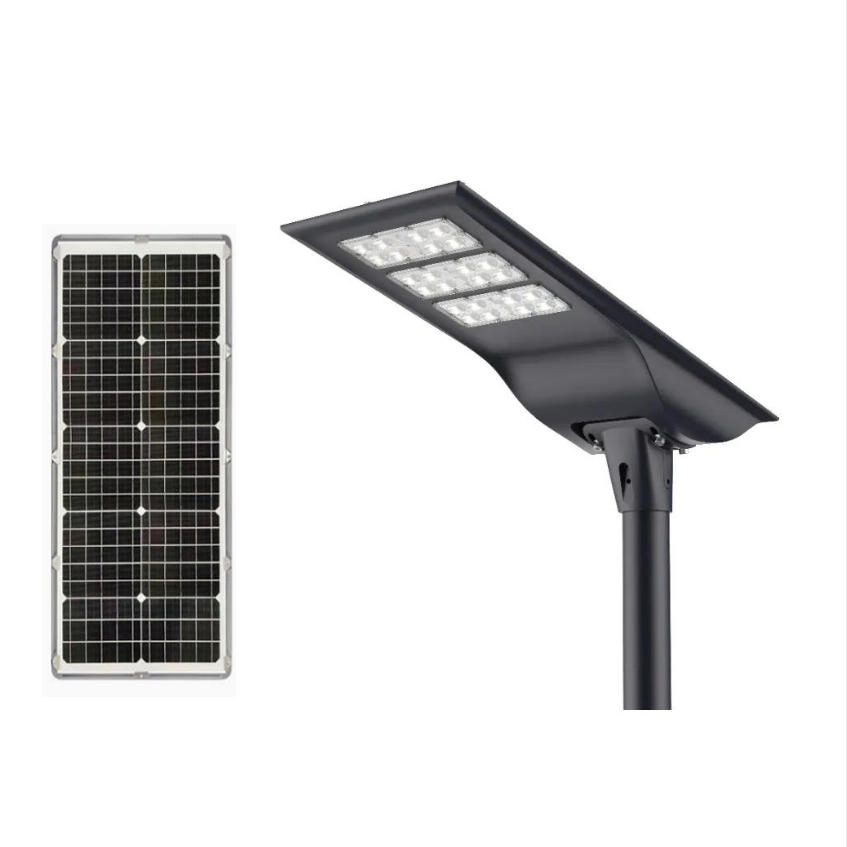

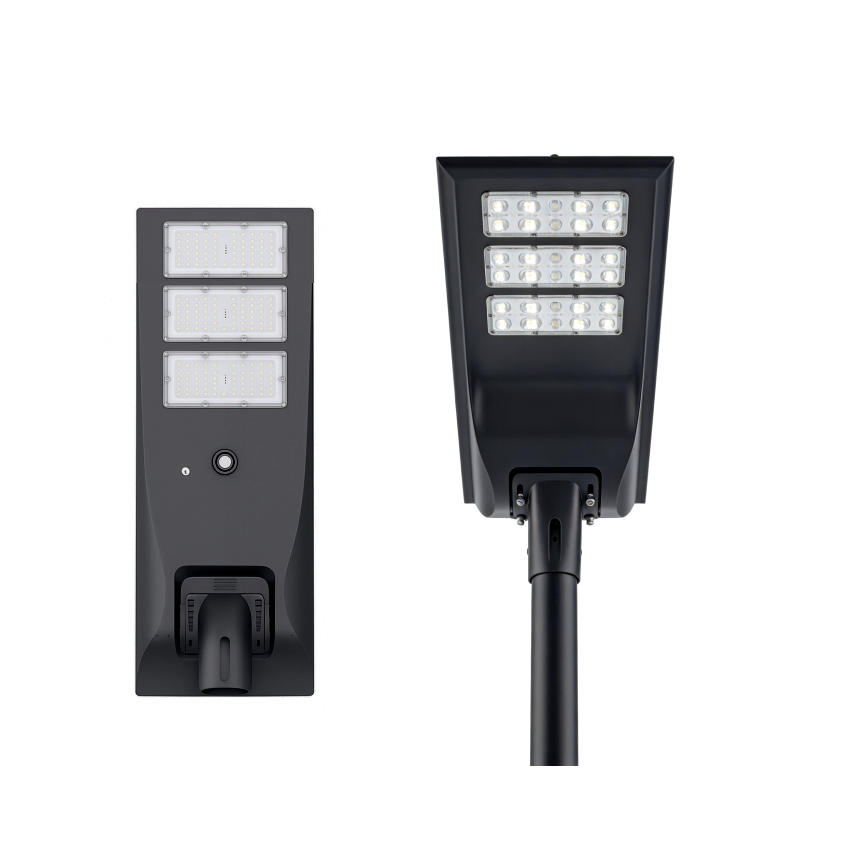

All-in-one Solar Street Light 027 Series

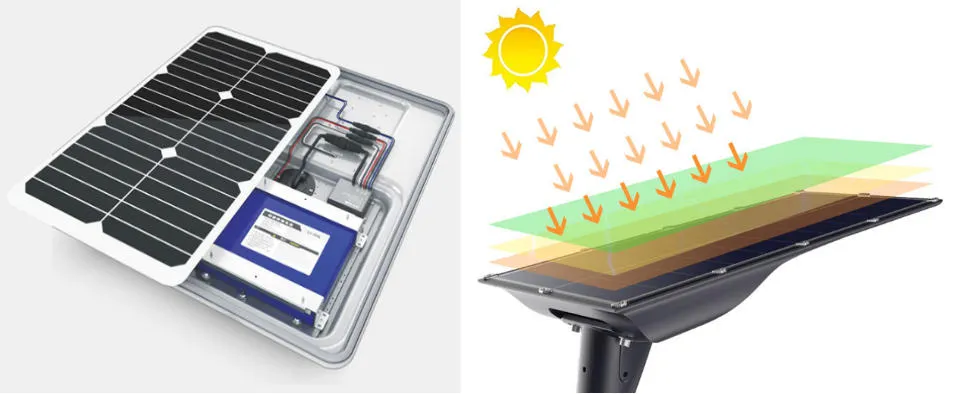

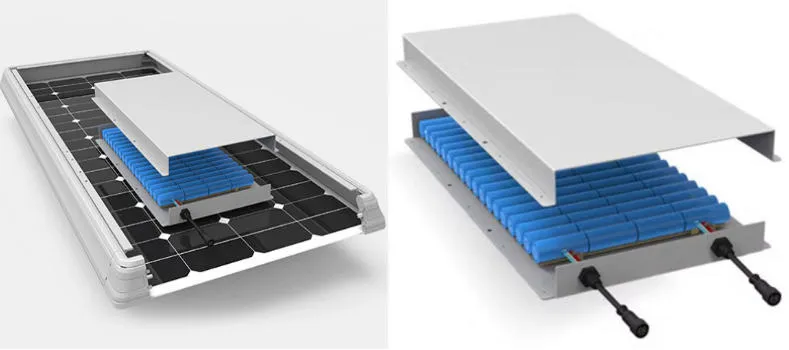

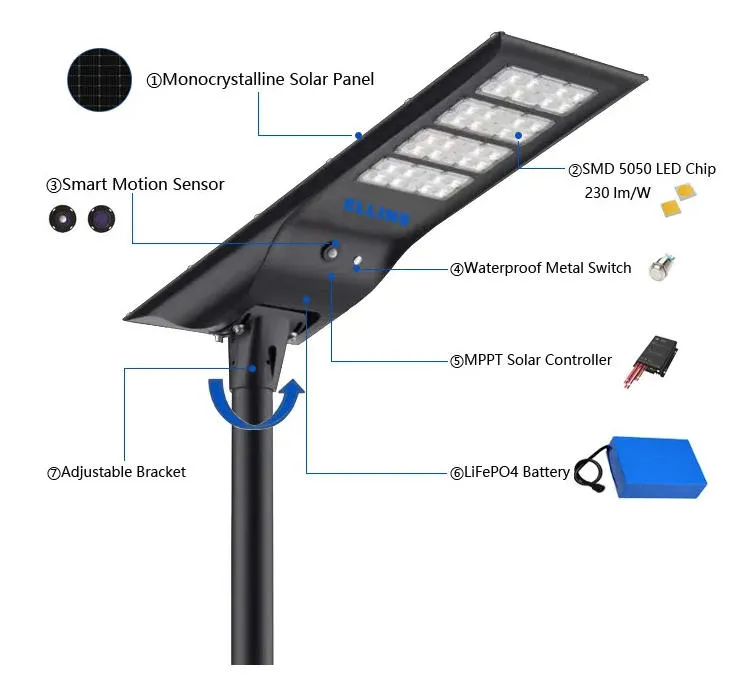

This series combines modern design with advanced photovoltaic technology. It integrates the luminaire, monocrystalline solar panel, and A1-grade LiFePO4 battery into a single, cable-free housing that simplifies installation and enhances aesthetic appeal. Crafted from die-cast aluminum with a nano-coated finish, it provides superior corrosion resistance and dependable performance in harsh outdoor environments.

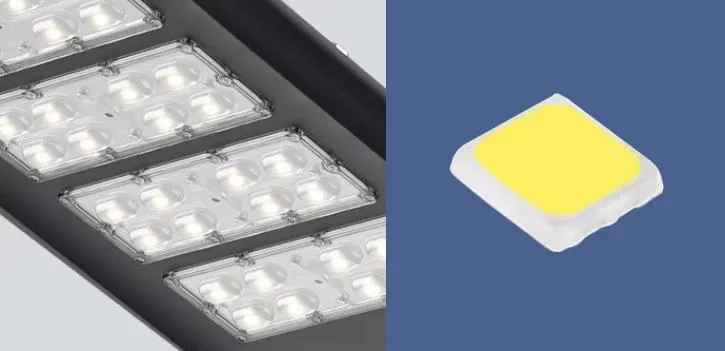

Delivering over 160 lm/W, its high-lumen LEDs project a precision bat-wing light distribution for uniform illumination with minimal glare. The smart MPPT controller optimizes energy capture while automatically adjusting brightness based on motion and ambient light.
Features & Advantages
✔Integrated Design: Standardized parts ensure broad compatibility and tool-free installation.

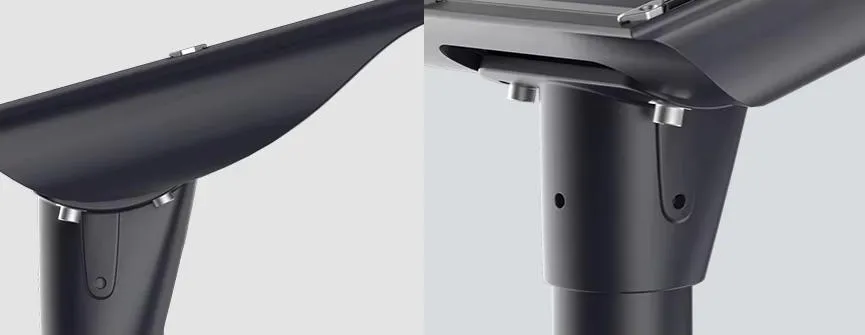

✔Durable Construction: 6063-T5 aluminum alloy provides high strength and outdoor reliability.
✔IP66 Protection: Fully sealed against dust and high-pressure water.
✔Efficient Charging: High-performance monocrystalline panels enhance energy conversion.

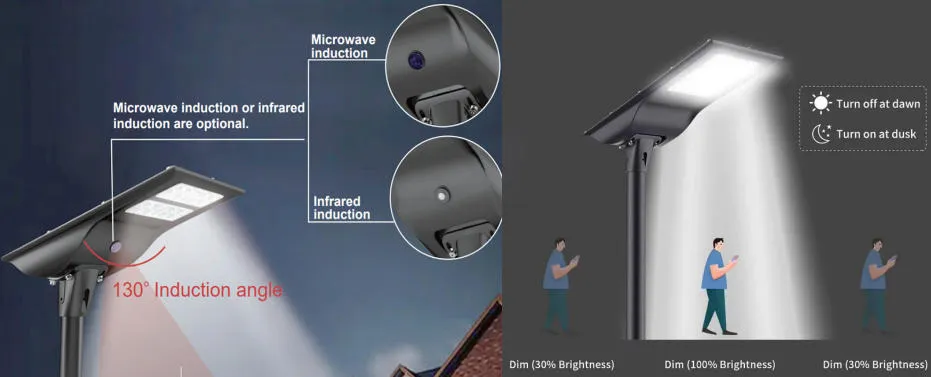

✔Smart Control: Built-in light sensors enable automatic on/off and adaptive dimming.
Specifications
| Model |
ZD-SSTL-027-040 |
ZD-SSTL-027-060 |
ZD-SSTL-027-080 |
| Power | 40W | 60W | 80W |
| LED Quantity | 3030SMD×100 | 3030SMD×150 | 3030SMD×200 |
| Solar Panels | 40W Mono | 50W Mono | 65W Mono |
| Battery Capacity | 116WH 3.2V | 192WH 3.2V | 240WH 3.2V |
| Working Mode | Radar Induction + Time Control + Intelligent Control |
| IP Rating | IP65 | IP65 | IP65 |
| Install Height | 5-6M | 6-7M | 7-8M |
Frequently Asked Questions
Q1: What is an all in one solar street light?
An all in one solar street light is an integrated lighting system that combines the solar panel, lithium battery, charge controller, and LED light source into a single compact unit for easy installation.
Q2: How many hours can the solar street light work at night?
Depending on battery capacity and sunlight conditions, it can provide 8–24 hours of continuous lighting after being fully charged.
Q3: Can the solar street light work during rainy or cloudy days?
Yes. The built-in lithium battery is designed to support 2–5 consecutive rainy or cloudy days depending on the specific model configuration.
Q4: What installation height is recommended?
Installation height usually ranges from 5 to 12 meters, depending on the wattage, lumen output, and specific road width requirements.
Q5: Does it support motion sensors or dimming?
Yes, most units support PIR/Microwave motion sensors and intelligent dimming to maximize energy efficiency during the night.
Q6: What materials are used for the housing?
The housing is typically made of high-strength die-cast aluminum with an anti-corrosion coating, ideal for harsh outdoor environments.
