📋 Basic Specification
Application
Home, Industrial, Commercial
Specification
Normal, CE, RoHS, ISO 9001

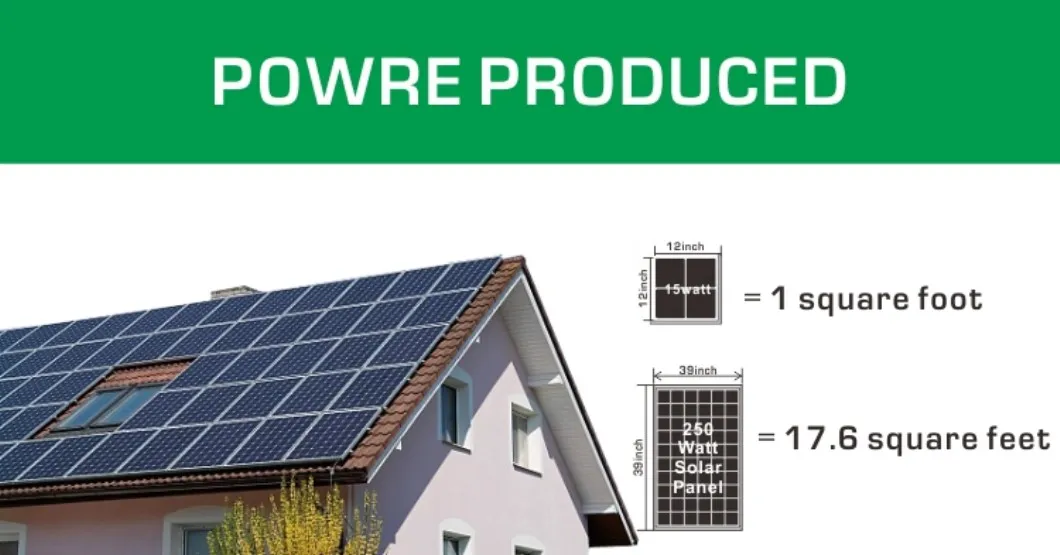

Roof Area Required
8-10 Sq.Meters Per 1kw
Charge Method
Utility Grid or Solar Panel
Protection
Overloads, Overcharge, Short Circuit
Max Loads Power
100W~1500W
Accessories
Phone Charging Unit

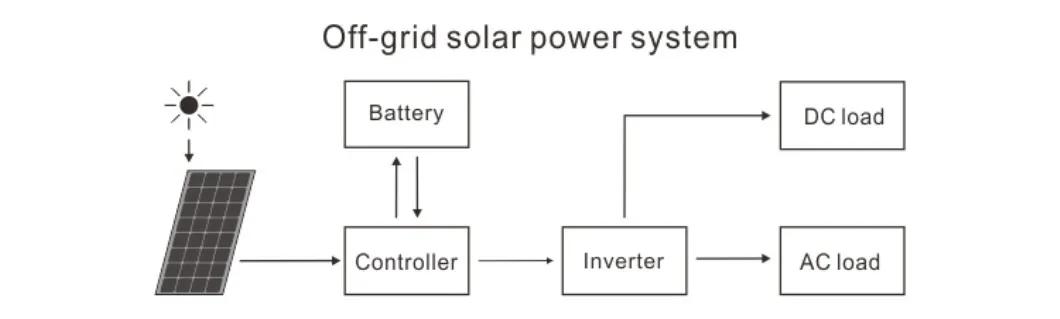

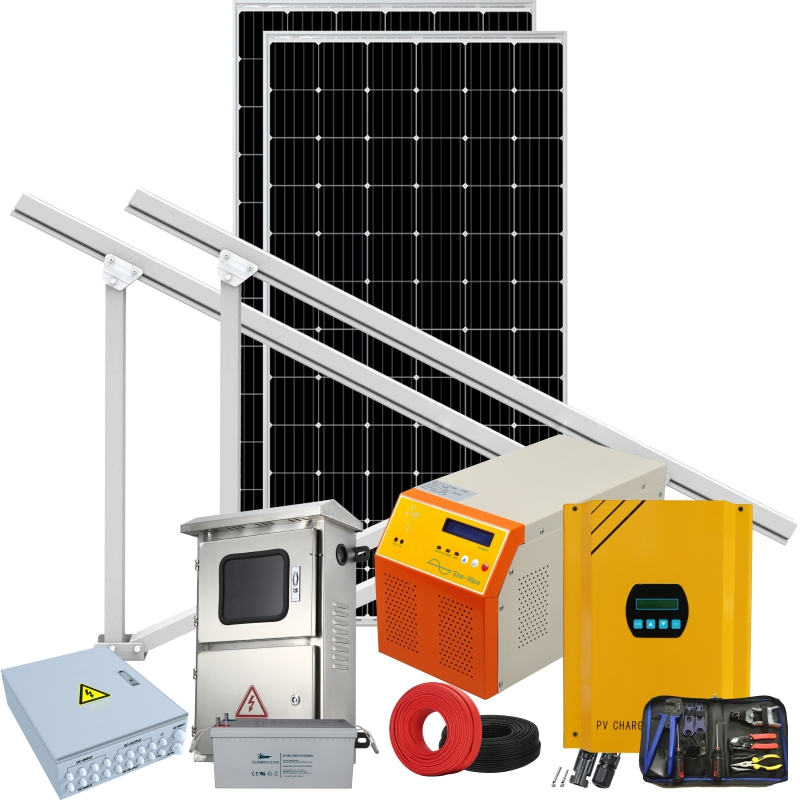

💡 Product Overview & System Diagram
📌 Key Feature: Easy installation with provided manuals and connection drawings. The system supports multiple mounting environments including slant roofs, cement ground, and soil ground.
⚙️ Configuration List
| Item |
Certification |
Description |
Quantity |
Warranty |
| Solar panel |
TUV / IEC / EC |
Mono or Poly |
160 pcs |
20 years |
| Inverter |
CGC / CQC / VDE |
MPPT tracking/ 50/60Hz; 230Vac 10kW |
8 set |
5 years |

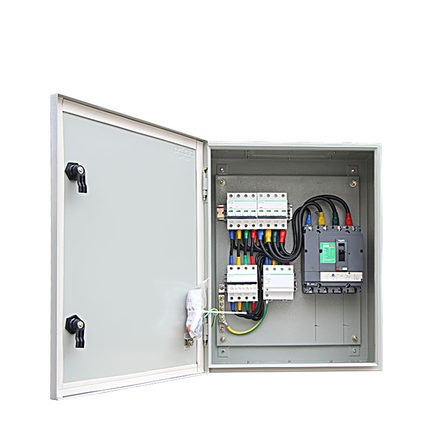

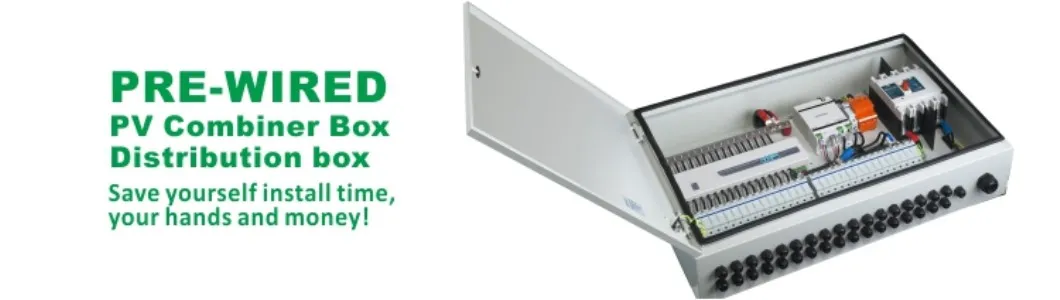

| Distribution box |
CE |
Lightning Protection, Air switch, Fusegar |
3 set |
5 years |
| Mounting system |
CE |
Slant roof / Cement Ground / Soil ground |
1 set |
10 years |
| PV cable |
TUV/ UL |
DC port 1*6mm² / AC port YJV-3*8mm² |
200m / 10m |
10 years |

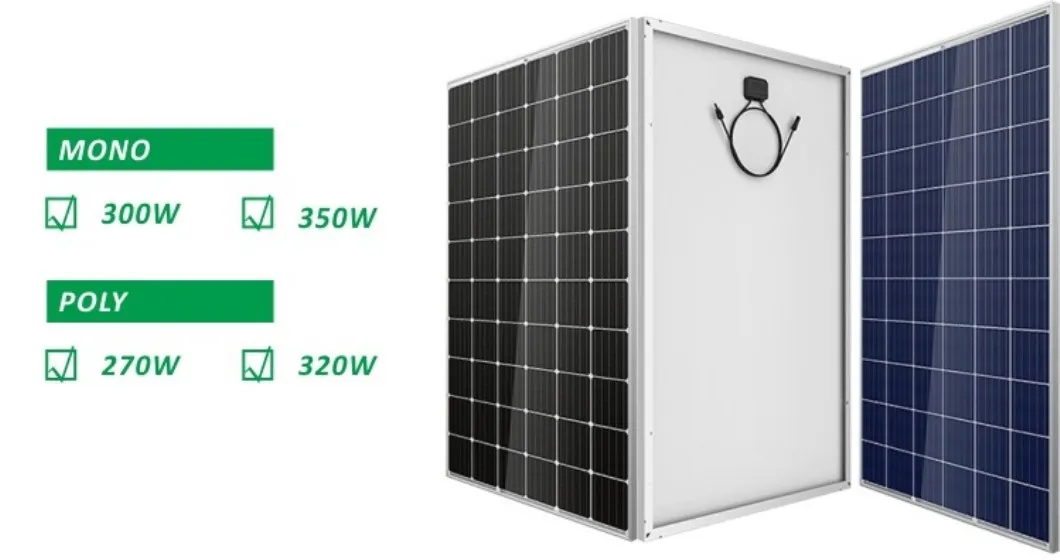

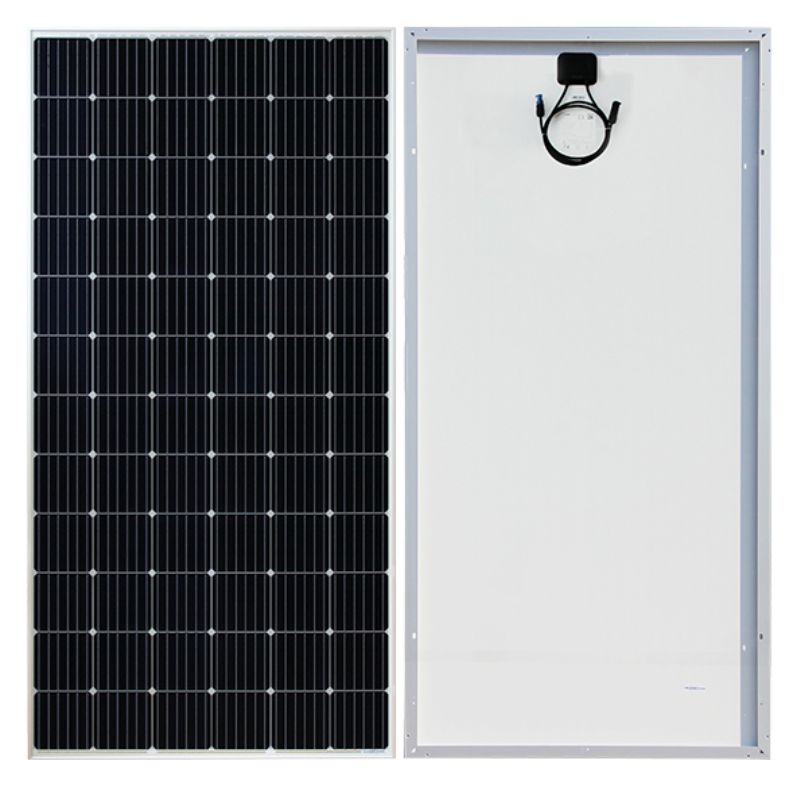

☀️ Solar Panel Specifications

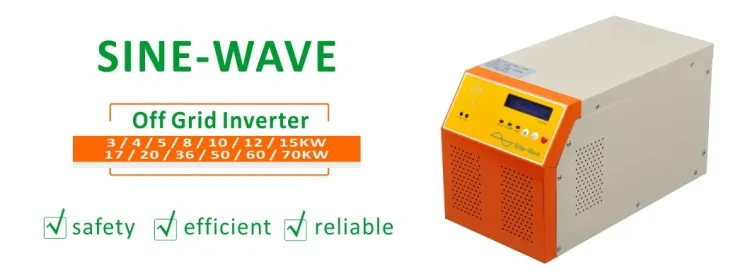

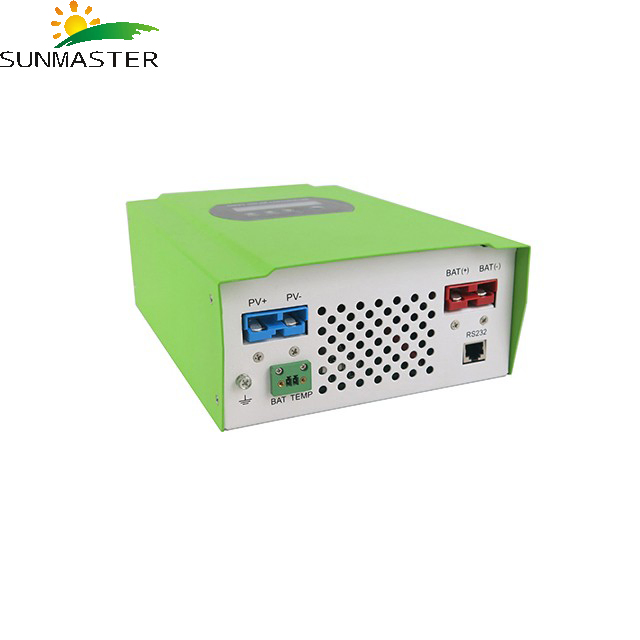

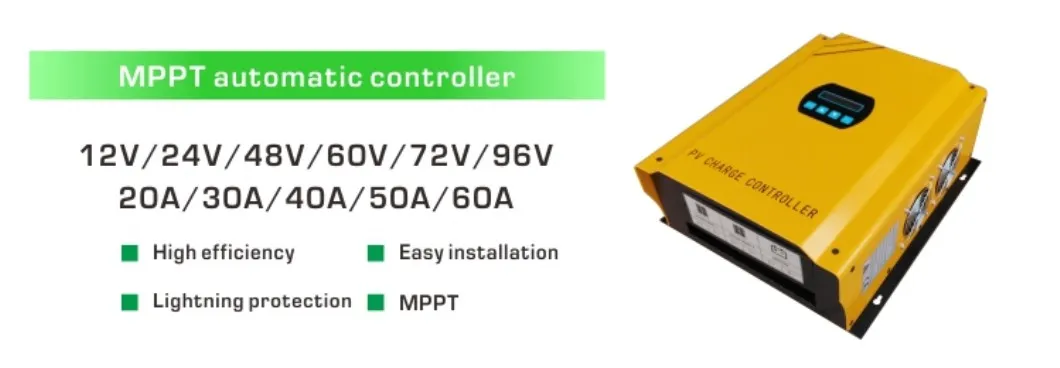

🔌 Inverter & Controller

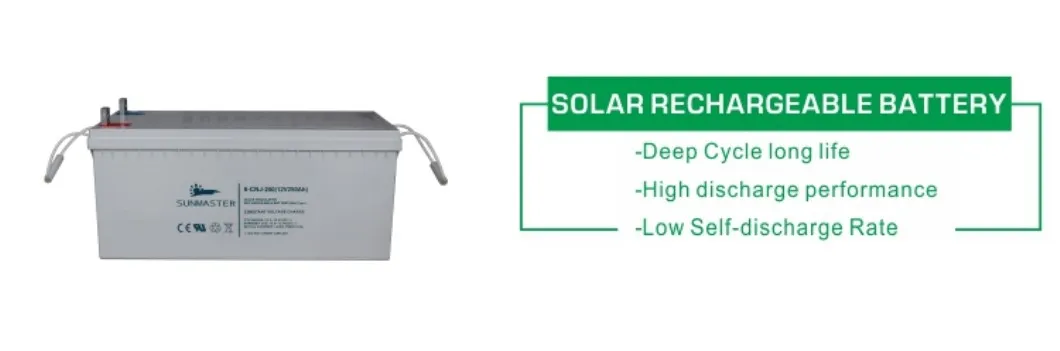

🔋 Storage & Protection

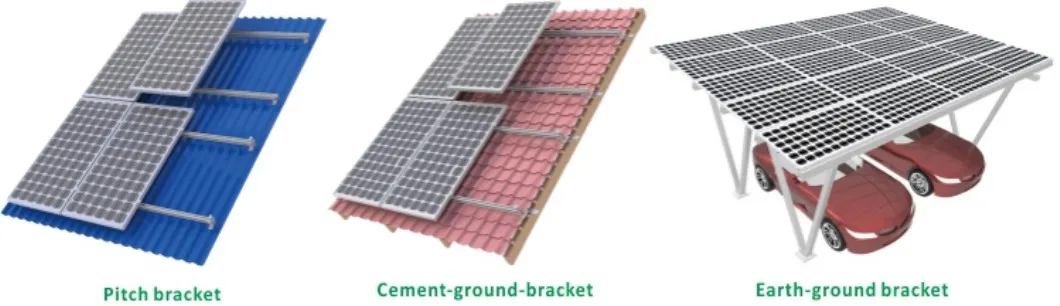

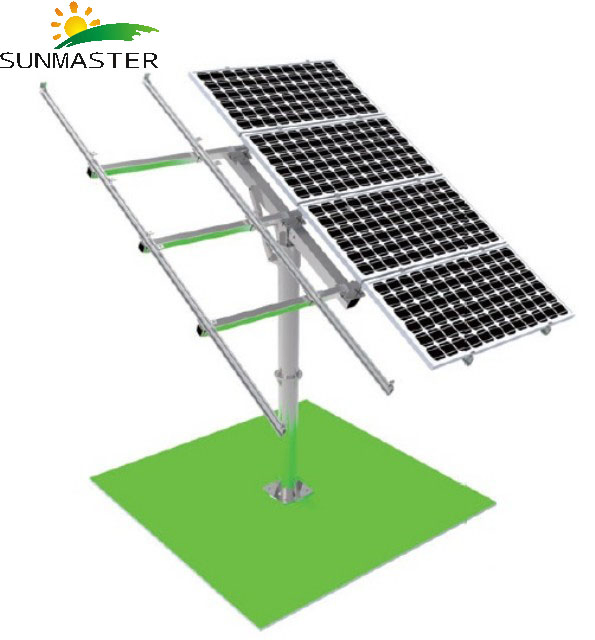

🏗️ Mounting System & Durability
Safety Performance:
- Wind capacity: Up to 40m/s (Level 13)
- Snow load capacity: Up to 70kg/sq.m
- Customizable solutions based on site conditions (Roof, Flat ground, Soil).
❓ Frequently Asked Questions
What is the waterproof rating of this solar system?
The system features an IP67 waterproof degree, ensuring high durability and protection against water ingress in various weather conditions.
How long does the solar generator work on a full charge?
The typical working time is 6-8 hours, depending on the load and environmental conditions.
What kind of maintenance does the mounting system require?
The mounting system is designed for high safety with wind resistance up to 40m/s and heavy snow load capacity (70kg/sq.m). It requires minimal maintenance once correctly installed.
Can this system be used for both residential and industrial purposes?
Yes, the application range is versatile, covering Home, Industrial, and Commercial needs.
What safety protections are built into the generator?
The system includes comprehensive protection against overloads, overcharging, short circuits, and polarity reversal, along with low voltage alarms.
Is the installation process complicated?
No, the system is designed for easy installation. We provide detailed manuals and connection drawings to guide you through the setup.
