Tycorun 12V DC Solar Water Pump System for Irrigation / Agriculture Built-in Pump Controller

Basic Information

Model NO.

Solar Water Pump System

Application

Home, Industrial, Commercial

Specification

Normal, Lithium Battery Pack

Cycle Life

>2000 Cycles

Features

Deep Cycle Battery

Charge Temp.

0 ~50 °C

Discharge Temp.

-20 ~55 °C

Material

Metal/ABS

Production

30000 PCS/Month

Product Description

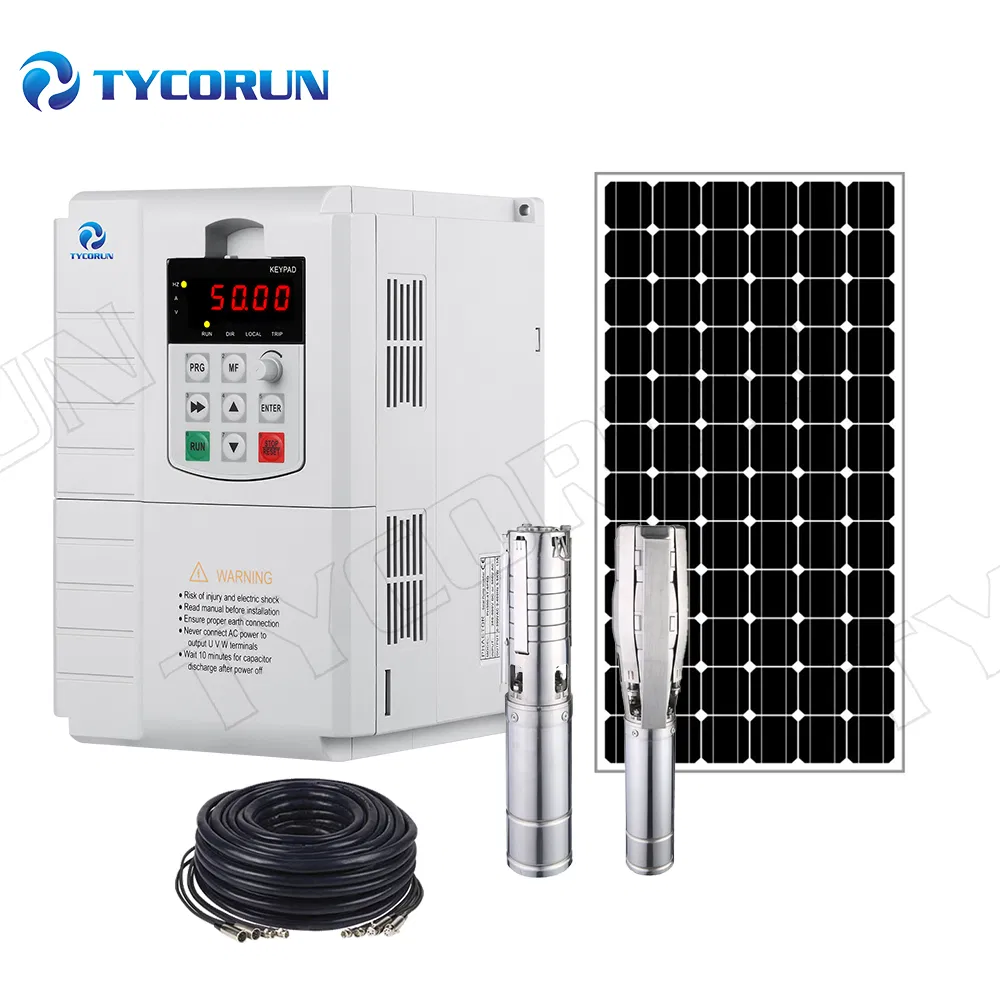

12V DC Solar Water Pump System for Irrigation and Agriculture with Built-in Controller

Pump Body	Stainless steel 304
Motor Body	Stainless steel 304
Mechanical Seal	Ceramic graphite
Impeller	Stainless steel 304
Electric Motor	24V~110V
Protection Class	IP X8 / Insulation Class B
Outlet Diameter	1.25"

Technical Parameters

ITEM	Voltage	Power	Max Flow	Max Head
3DPC3-25-24-200	24V	200W	3000L/H	25M
3DPC3-35-24-300	24V	300W	3000L/H	35M
3DPC3.5-80-48-600	48V	600W	3500L/H	80M
3DPC3.5-95-72-750	72V	750W	3500L/H	95M
3DPC3.8-123-110-1100	110V	1100W	3800L/H	123M
3DPC3.8-180-110-1500	110V	1500W	3800L/H	180M

Key Advantages

High efficiency, compact size, and lightweight design with advanced functions.
Integrated MPPT function for maximum solar power tracking.
Automatic operation: Works seamlessly with both solar panels and batteries.
Smart energy management: Prioritizes solar power, switches to battery automatically when needed.
Dry-run protection: Automatically stops if no water is detected for 1 minute; restarts every 30 minutes to re-test.
Brushless DC motor technology for longer lifespan and higher reliability.

System Components

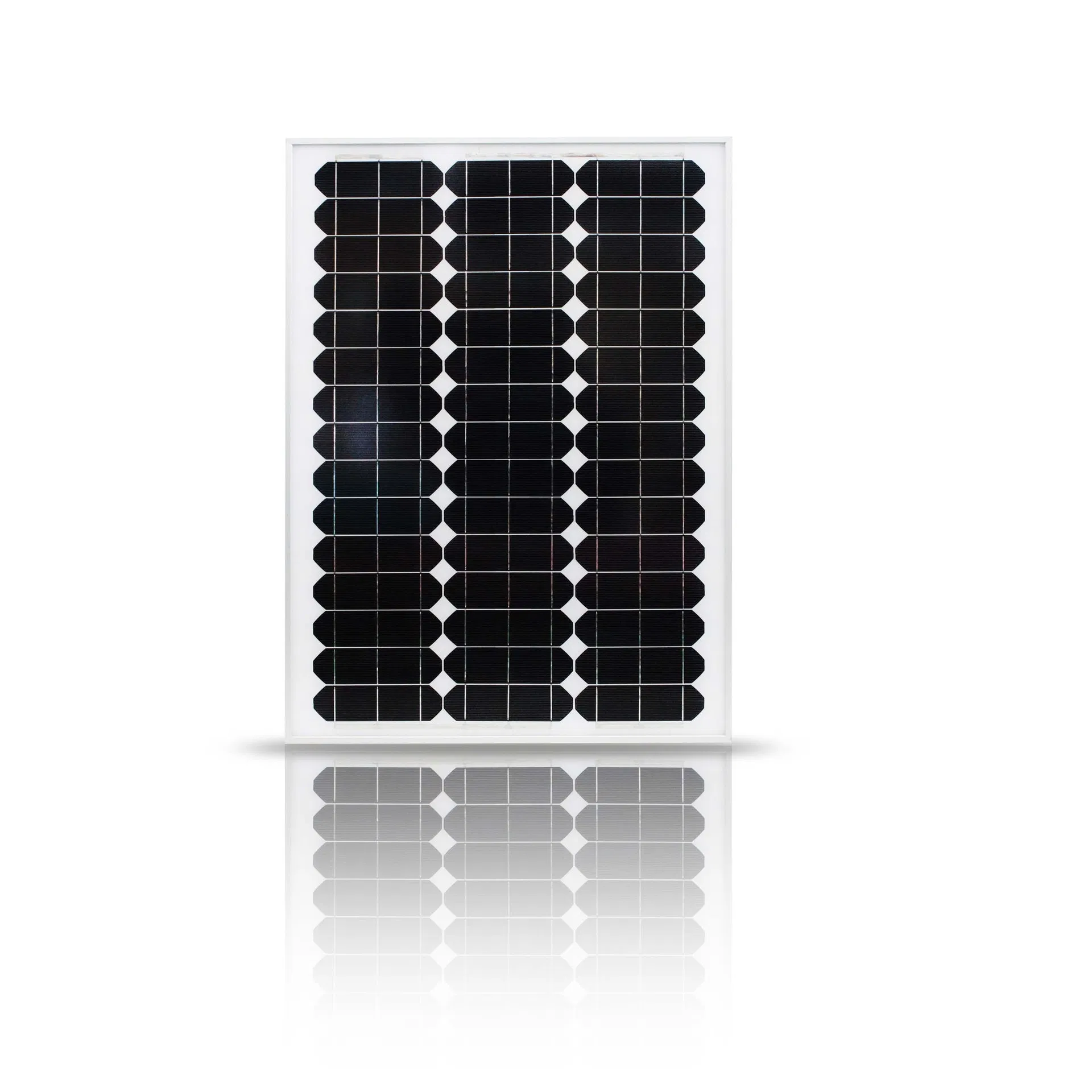

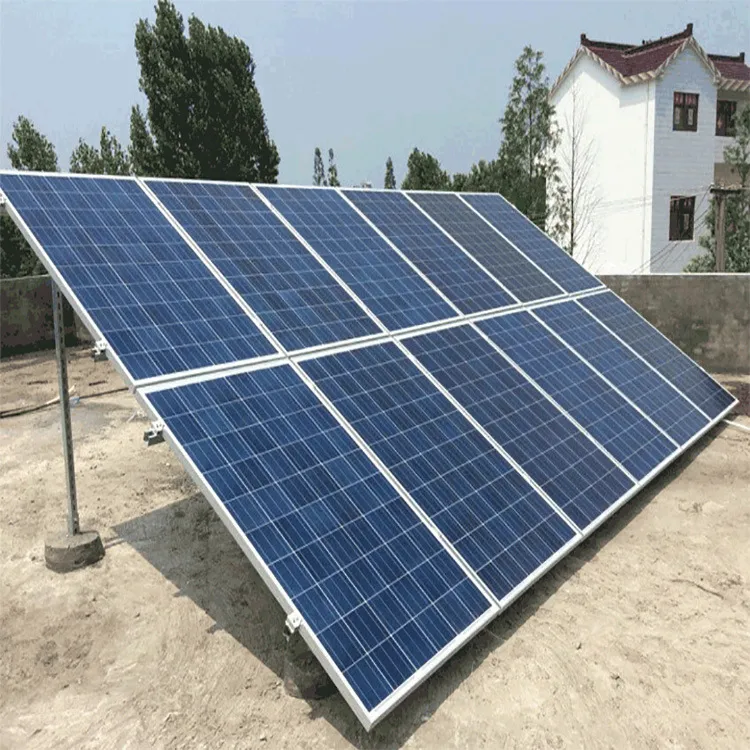

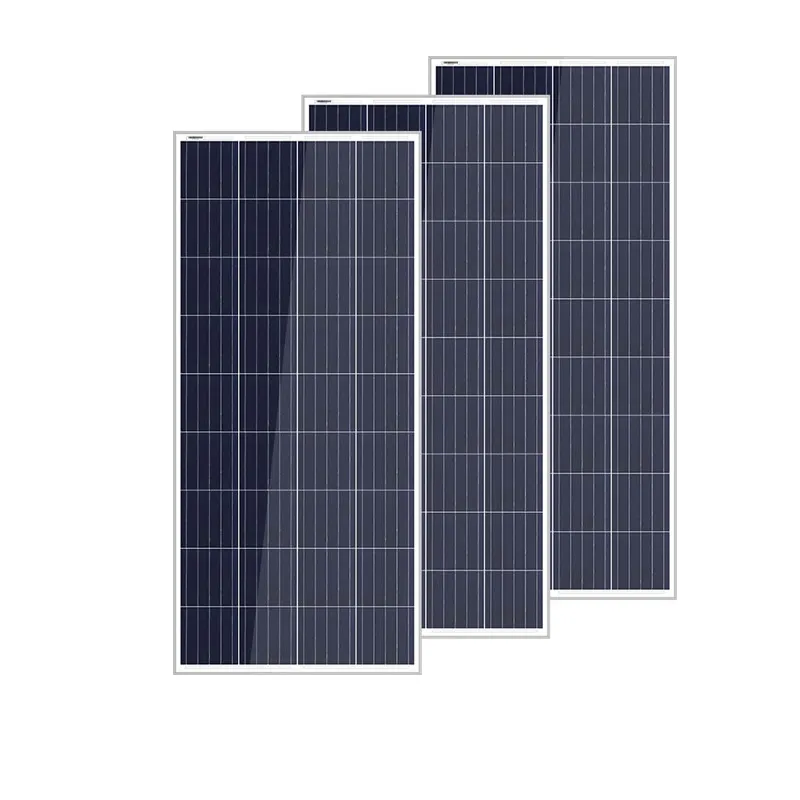

Solar Panels

Highest conversion efficiency up to 17%
Anti-reflective and anti-soiling surface
Excellent mechanical load resistance
PID resistant, high salt and ammonia resistance

Mounting Support

Residential & Commercial Roof solutions
Ground mounting & Vertical wall systems
Full aluminum structure options
Car parking solar mounting systems

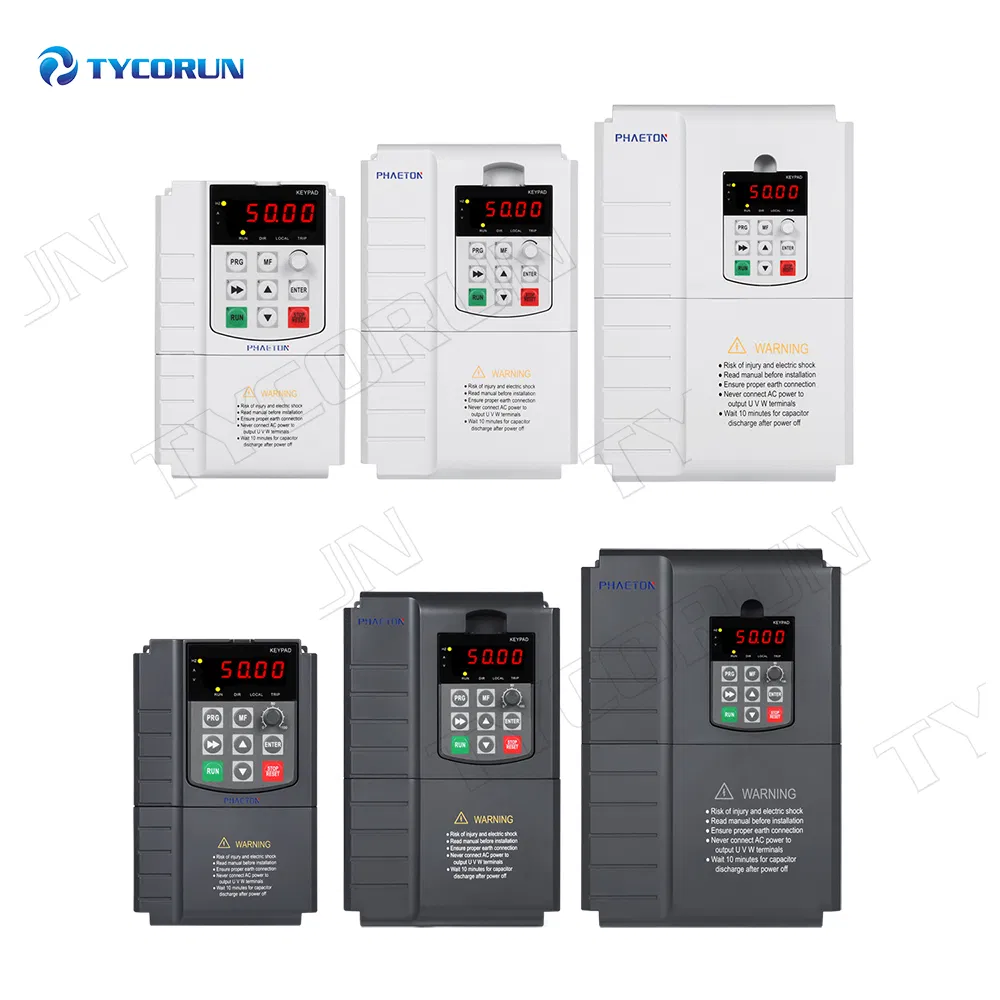

Pumping Inverter & Water Pump

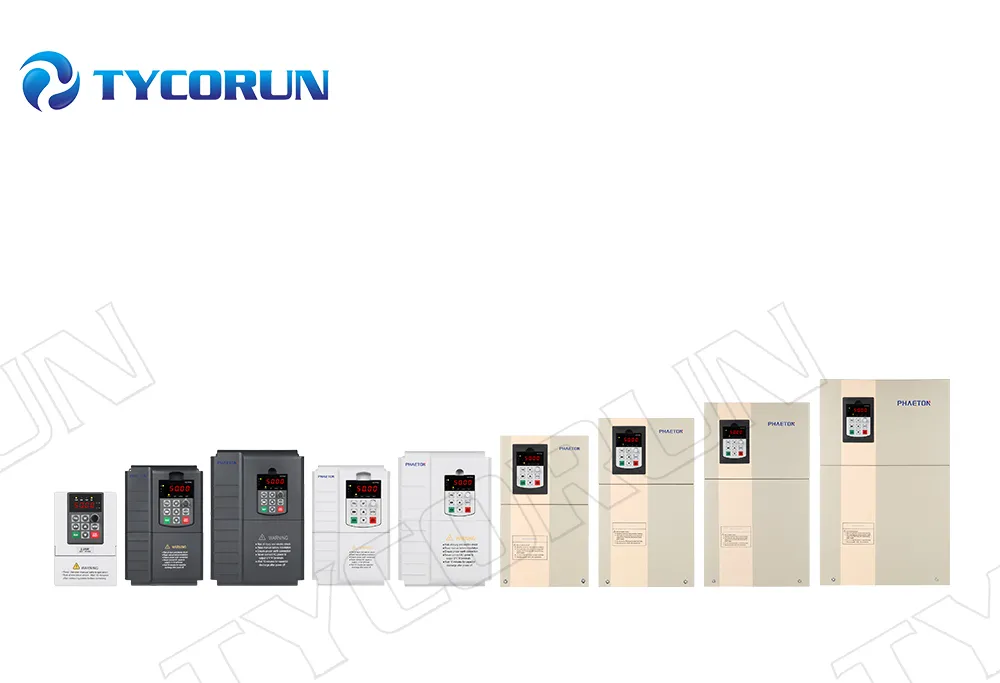

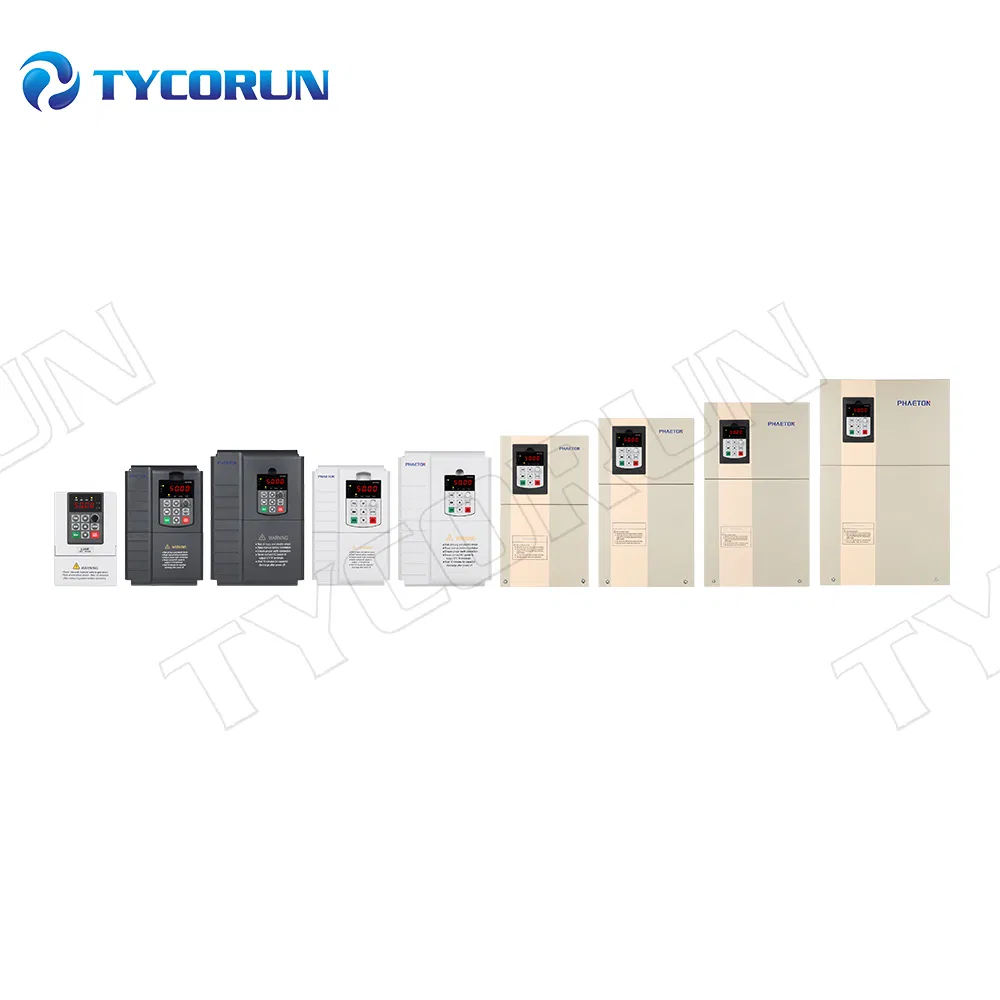

Inverter Options:
- AC Inverter: 380/400/415/440VAC (+15%), Three Phase
- DC Inverter: 24/36/48/72/192/216VAC
- Includes Grid-Tie function for city grid connection.

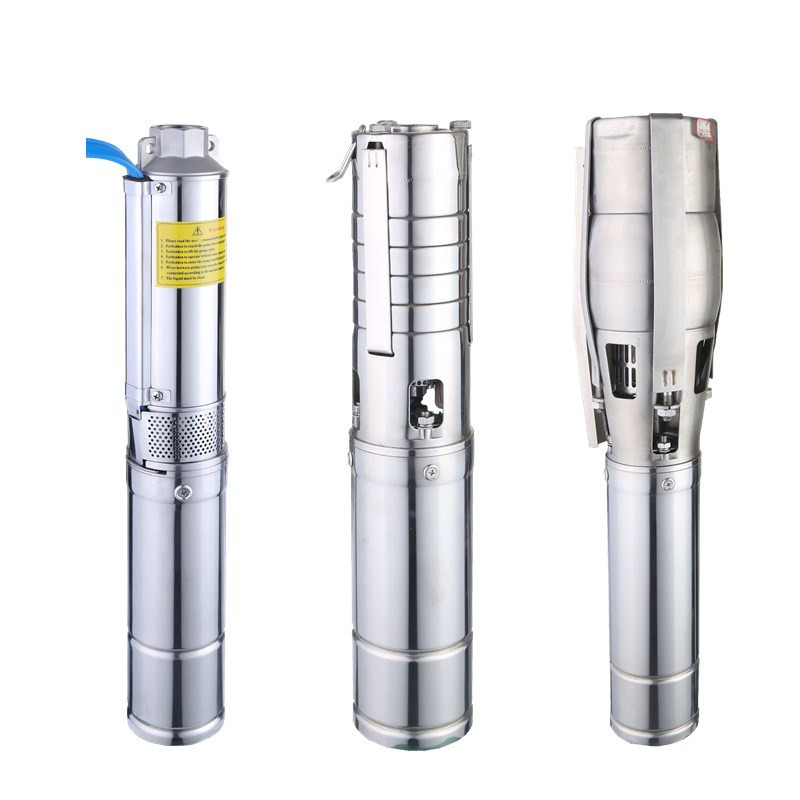

Pump Options:
- AC Submersible Pump: 0.25KW to 93KW
- DC Submersible Pump: 80W to 3000W

Certifications & Shipping

Frequently Asked Questions

Can I have a sample order for testing?

Yes, we welcome sample orders to test and verify the quality of the solar pump system.

What is the typical lead time for production?

Samples usually take 5-10 days. Mass production typically requires 3-5 weeks depending on the order volume.

Is there a minimum order quantity (MOQ)?

Low MOQ is available. We support 1pc for sample checking. Mass production MOQ depends on specific part numbers.

How are the goods shipped and how long is the transit?

We usually ship via DHL, UPS, FedEx, or TNT (3-5 days). Air and sea freight options are also available for larger orders.

How do I proceed with a formal order?

First, share your requirements. Second, we provide a quote. Third, you confirm samples and deposit. Finally, we arrange production.

Do you support custom logo printing?

Yes. Please inform us officially before production and confirm the design based on our sample.
