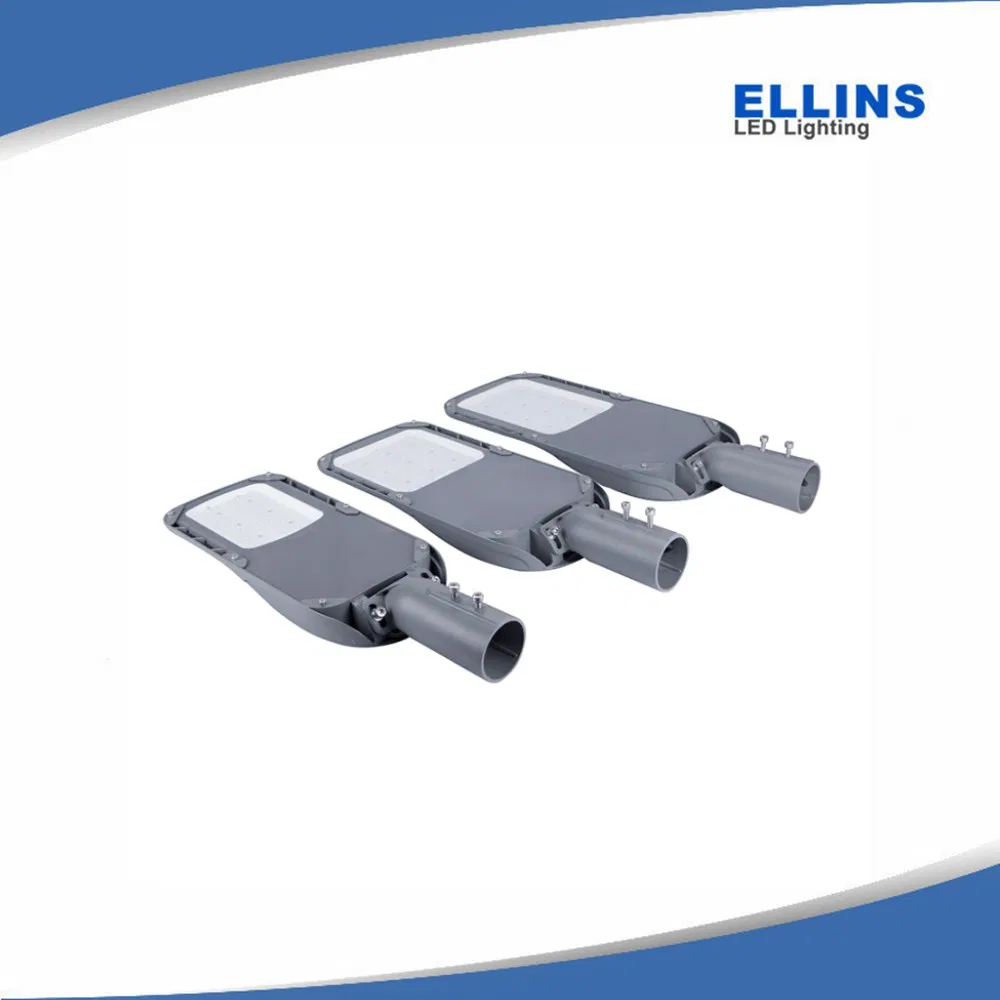

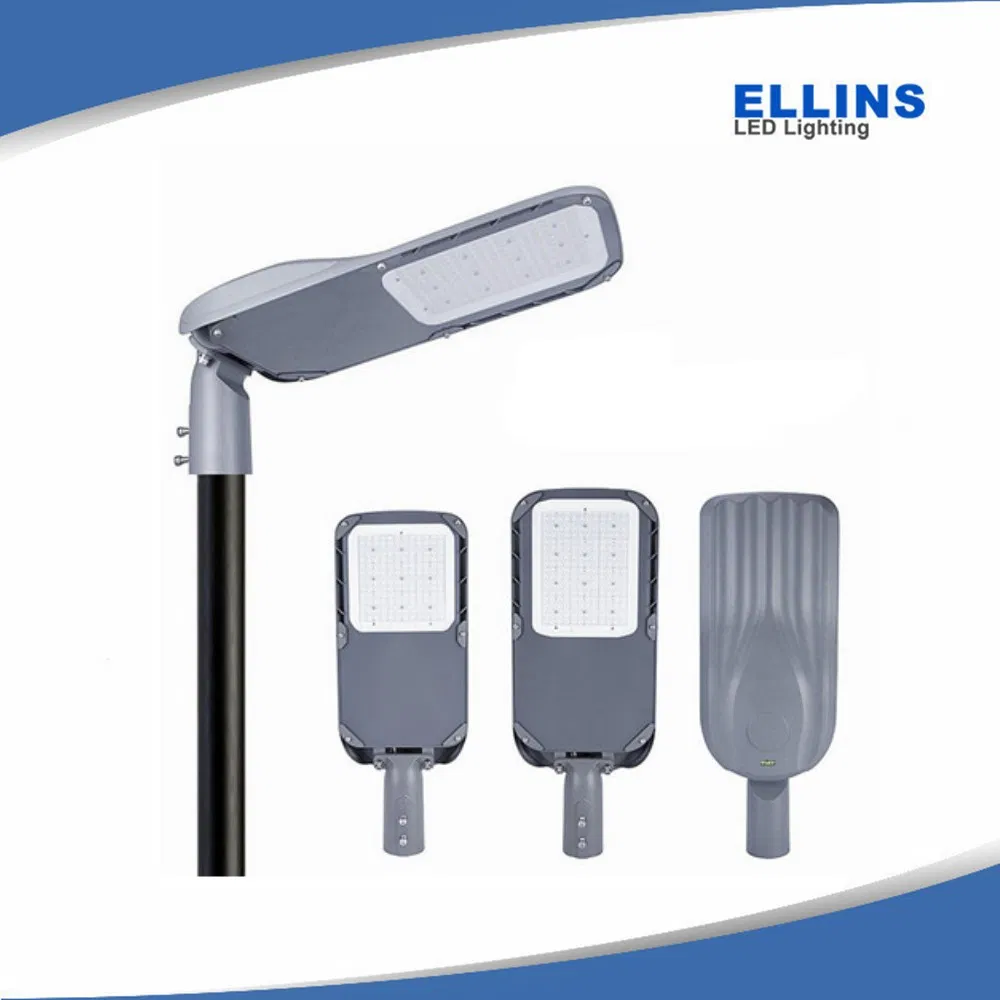

AC100-277V Smart LED Street Light Solar Parking Lot Lighting with Gateway and PLSM System
AC100-277V Smart LED Street Light Solar Parking Lot Lighting with Gateway and PLSM System
AC100-277V Smart LED Street Light Solar Parking Lot Lighting with Gateway and PLSM System
AC100-277V Smart LED Street Light Solar Parking Lot Lighting with Gateway and PLSM System
AC100-277V Smart LED Street Light Solar Parking Lot Lighting with Gateway and PLSM System
1 / 5
AC100-277V Smart LED Street Light Solar Parking Lot Lighting with Gateway and PLSM System
AC100-277V Smart LED Street Light Solar Parking Lot Lighting with Gateway and PLSM System
AC100-277V Smart LED Street Light Solar Parking Lot Lighting with Gateway and PLSM System
AC100-277V Smart LED Street Light Solar Parking Lot Lighting with Gateway and PLSM System
AC100-277V Smart LED Street Light Solar Parking Lot Lighting with Gateway and PLSM System

AC100-277V Smart LED Street Light Solar Parking Lot Lighting with Gateway and PLSM System

Customization: Available
Power Supply: AC
Color Temperature: 3000K 4000K 5000K 5700K 6500K
Send Inquiry

Product Description

i

Basic Information

Model NO. ELS-ST12 Lamp Body Material Aluminum
Power Range 30W / 50W / 70W / 100W / 120W / 150W / 200W / 240W IP Rating IP67
LED Chips CREE (SMD3030/5050) Chip Lumen 210 Lm/W
Lamp Lumen 160 Lm/W Certification CCC, CE, EMC, LVD, RoHS, VDE
Input Voltage 100-240V / AC100-277V CRI >80 Ra
Driver Brand Meanwell / Inventronics Beam Angle 150*65(T2) / 150*80(T3)
Lifetime 100,000 Hours Working Temp -40 ~ +50 ºC
Warranty 5 Years / 7 Years / 10 Years IK Class IK10
★

Product Description

High Efficiency and Energy Saving Outdoor Lighting LED Street Lamps available in various power options to suit highways, squares, gardens, and parking lots.

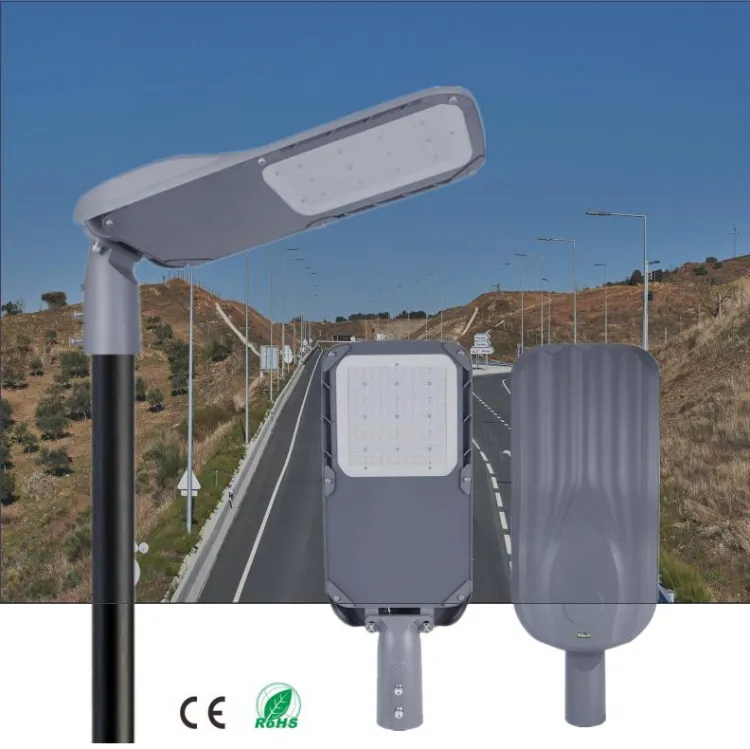

LED Street Light Overview
Slim & Compact Profile Designed for maximum wind resistance and stylish modern aesthetics.
High Efficiency Utilizes CREE chips achieving up to 210 lm/w efficiency for significant energy savings.
Reliable Components Equipped with Meanwell or Inventronics high-end drivers for optimal stability.
Weatherproof IP66/IP67 rated, snow and rain storm resistant, ideal for humid and coastal areas.
Easy Maintenance Includes a maintenance flap and circuit interrupter for quick access to the driver compartment.
Heat Dissipation Die-casting aluminum body with a module design for superior thermal management.
P

Detailed Photos

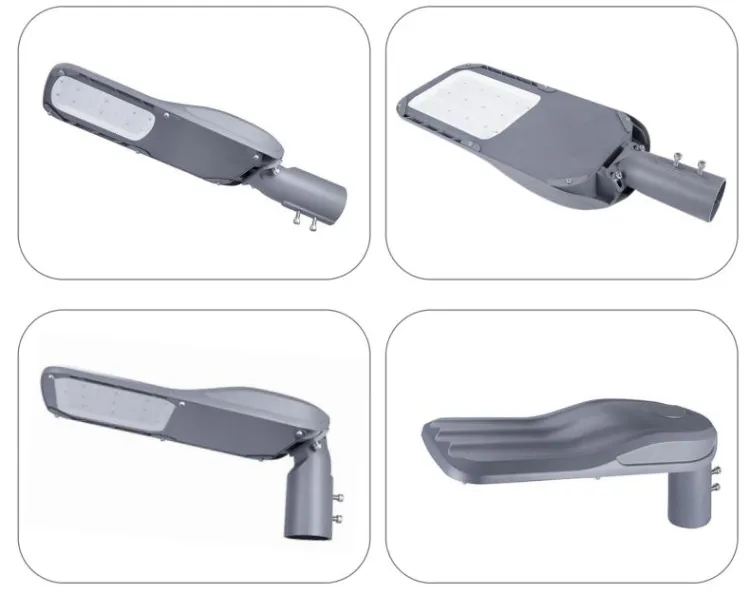

Detail 1

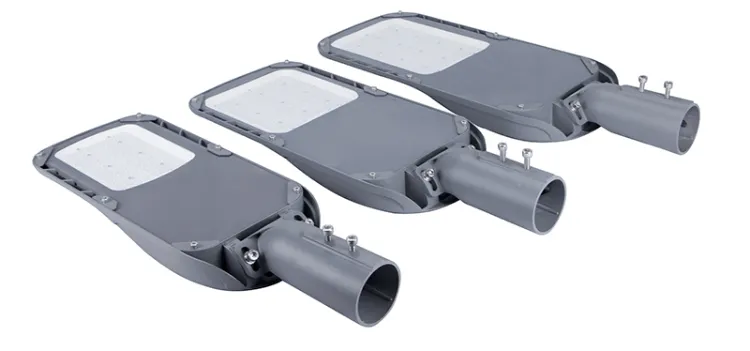

Detail 2

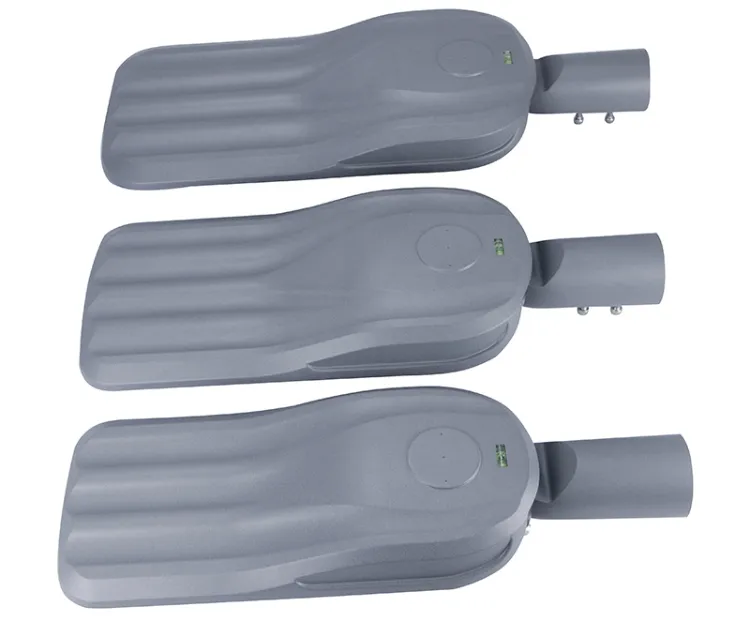

Detail 3

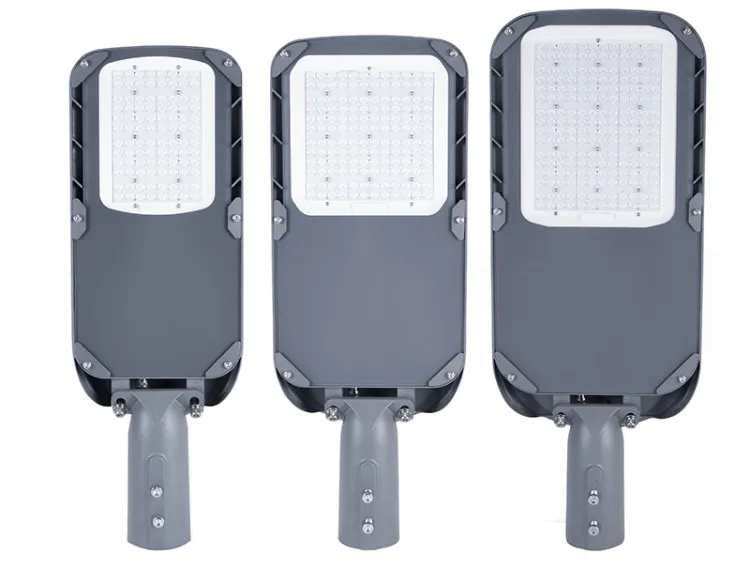

Detail 4

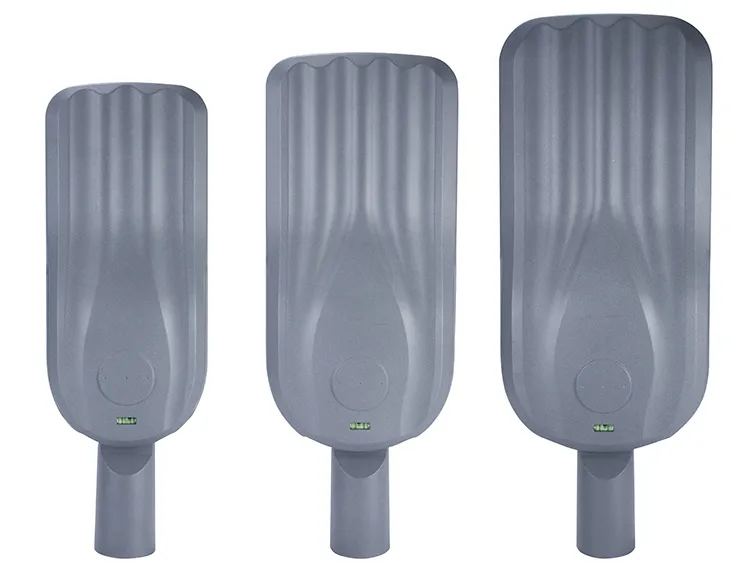

Detail 5

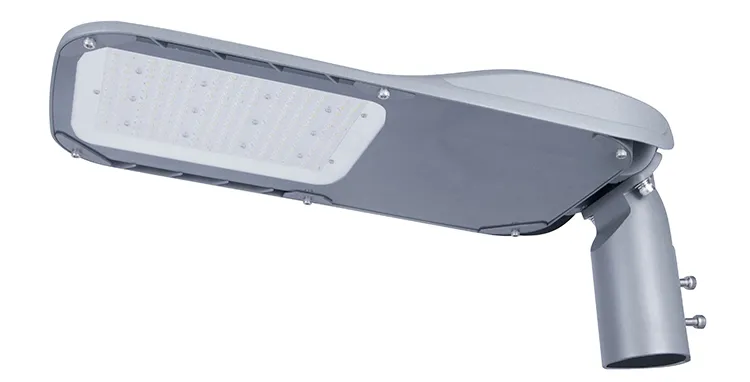

Detail 6

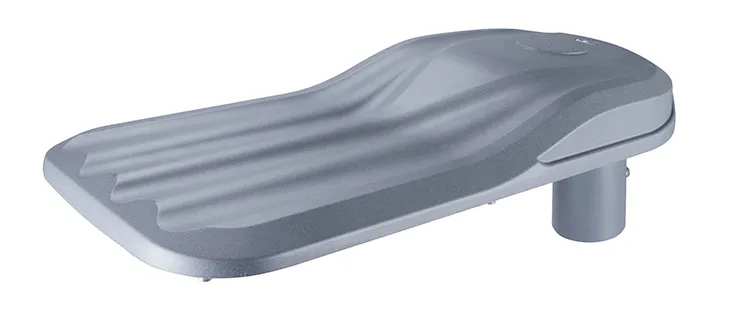

Detail 7

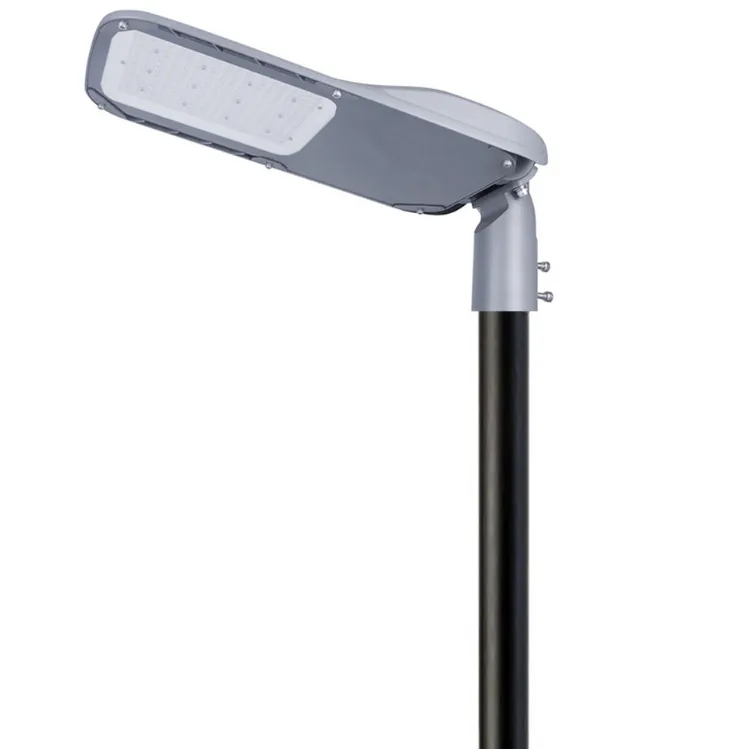

Detail 8
S

Specifications & Technical Data

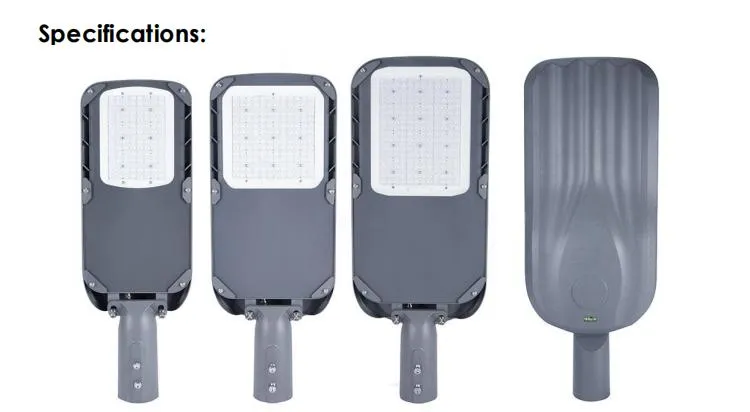

Specifications Table

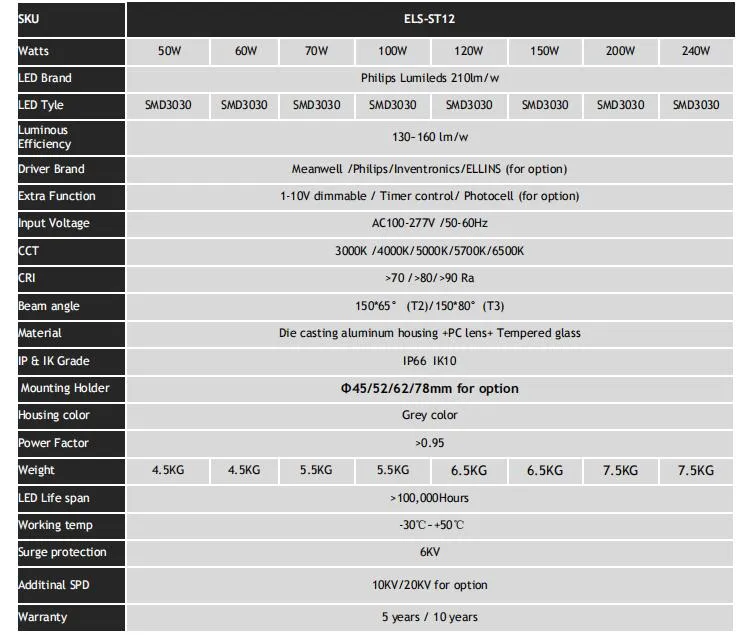

Technical Drawing 1
Technical Drawing 2

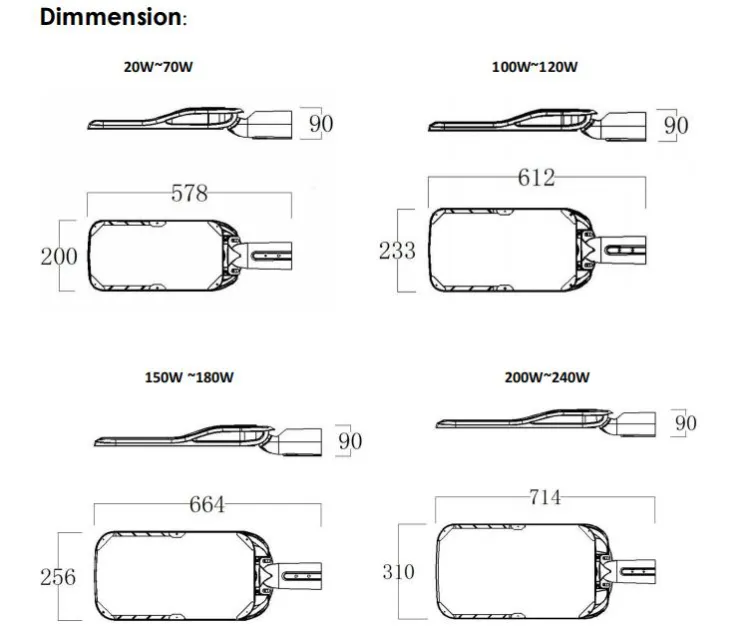

Installation Guide
L

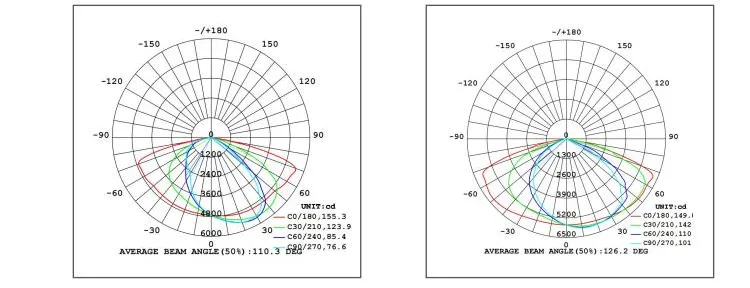

Light Distribution Curve

Light Curve 1
Light Curve 2
M

Production & Certification

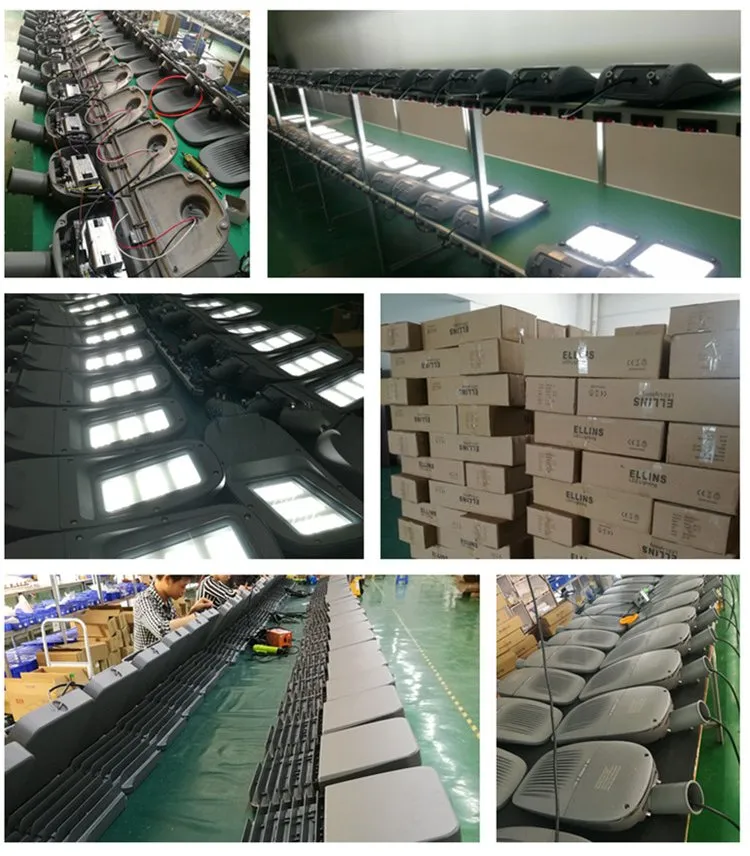

Production Facility

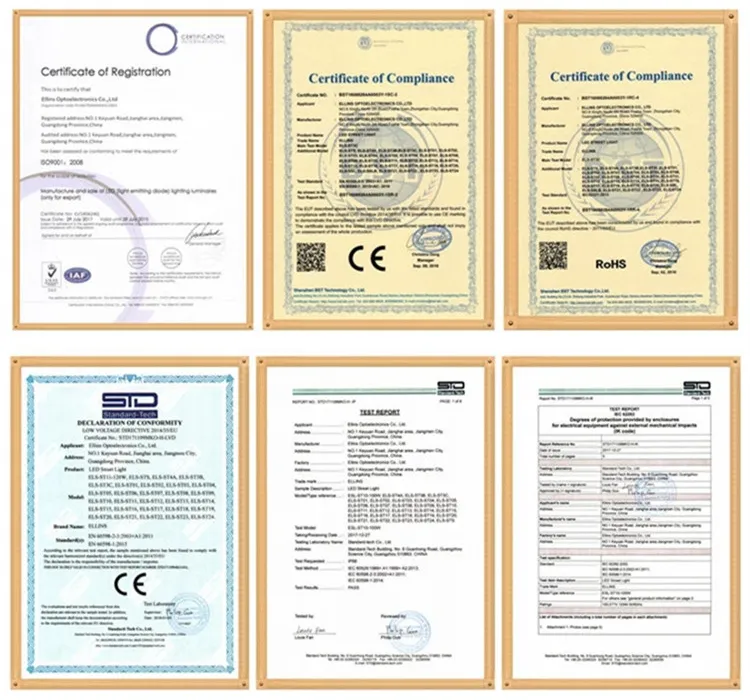

Certificates

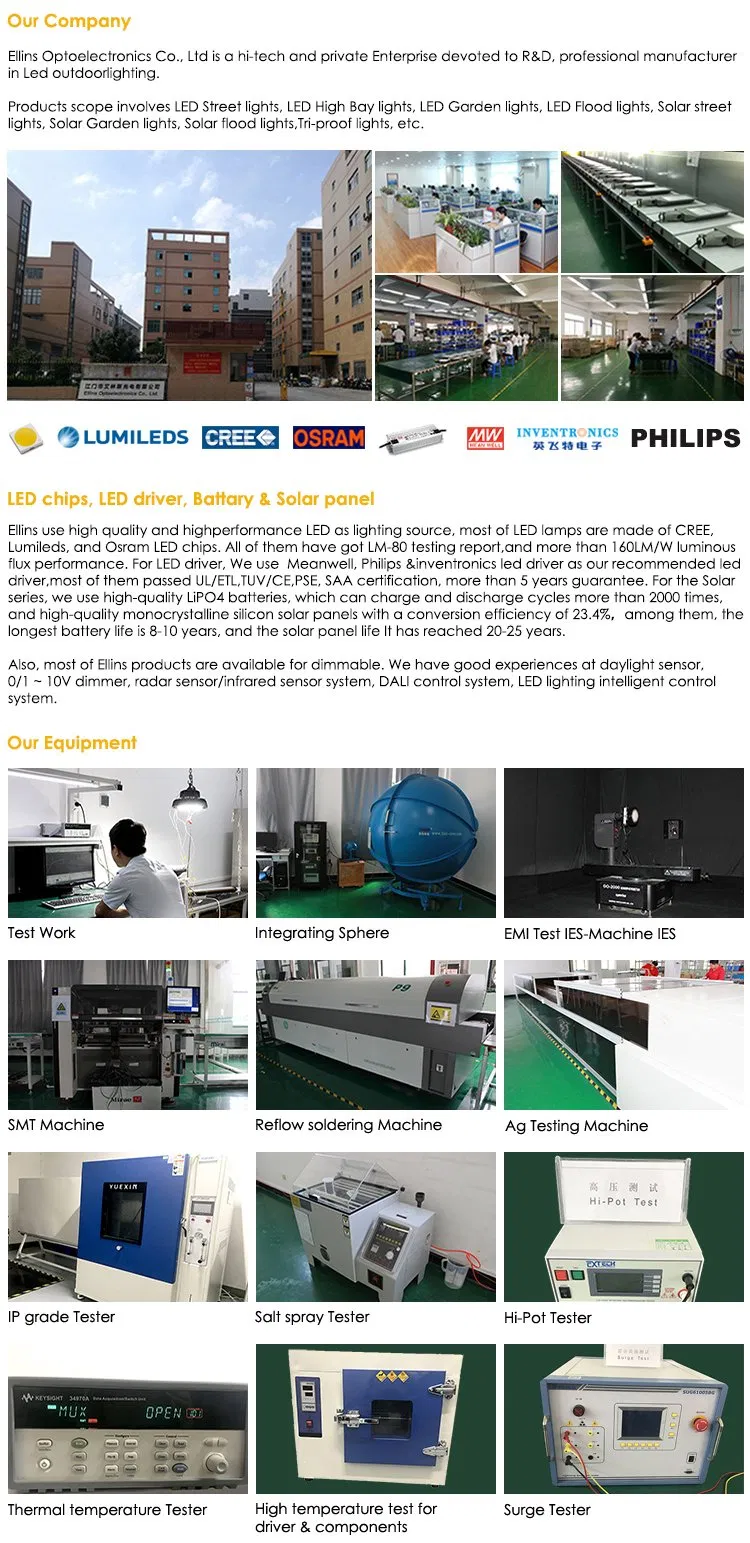

Quality Control
?

Frequently Asked Questions

What are the available power options for the ELS-ST12 series?
The series offers a wide range of power options including 30W, 50W, 70W, 100W, 120W, 150W, 200W, and 240W to meet various lighting requirements.
What is the expected lifespan and warranty of these LED street lights?
These lamps are designed for a long lifetime of over 100,000 hours. We offer flexible warranty options of 5 years, 7 years, or 10 years depending on the configuration.
Are these lights suitable for coastal areas?
Yes, the die-casting aluminum body is rustproof and the IP67 rating ensures extreme durability and reliability even in very humid weather and coastal environments.
Which brands of LED chips and drivers are used?
We utilize high-efficiency CREE LED chips (SMD3030/5050) and high-end drivers from Meanwell or Inventronics for optimal performance.
What are the main applications for this street light?
The ELS-ST12 is ideal for highways, city squares, gardens, parking lots, and other large outdoor public spaces.
Is the installation angle adjustable?
Yes, the lamp features an adjustable installation angle to ensure precise light distribution and easy setup on different pole types.
