12V40ah PVC Gel Solar and Wind Energy Storage System Signal System, Emergency Lighting System, Security System
12V40ah PVC Gel Solar and Wind Energy Storage System Signal System, Emergency Lighting System, Security System
12V40ah PVC Gel Solar and Wind Energy Storage System Signal System, Emergency Lighting System, Security System
12V40ah PVC Gel Solar and Wind Energy Storage System Signal System, Emergency Lighting System, Security System
12V40ah PVC Gel Solar and Wind Energy Storage System Signal System, Emergency Lighting System, Security System
1 / 5
12V40ah PVC Gel Solar and Wind Energy Storage System Signal System, Emergency Lighting System, Security System
12V40ah PVC Gel Solar and Wind Energy Storage System Signal System, Emergency Lighting System, Security System
12V40ah PVC Gel Solar and Wind Energy Storage System Signal System, Emergency Lighting System, Security System
12V40ah PVC Gel Solar and Wind Energy Storage System Signal System, Emergency Lighting System, Security System
12V40ah PVC Gel Solar and Wind Energy Storage System Signal System, Emergency Lighting System, Security System

12V40ah PVC Gel Solar and Wind Energy Storage System Signal System, Emergency Lighting System, Security System

Customization: Available
Type: Lead-Acid Batteries
Usage: UPS, Electric Power, Lighting
Send Inquiry

Product Description

📊 Basic Info.
Model NO.
LFPG1240 Gel
Nominal Voltage
12V
Discharge Rate
Low Discharge Rate
Shape
Square Battery
Electrolyte
Acid
Installation
Fixed
Rechargeable
Chargeable
Color
Black/Gray
Case Material
ABS
Transport Package
Cartons
Specification
197*165*148*157mm
Origin
Made in China
HS Code
8507200000
📝 Product Description

> Main Features

  • Gelled electrolyte technology
  • PVC separator
  • Recognized by CE
  • ABS container

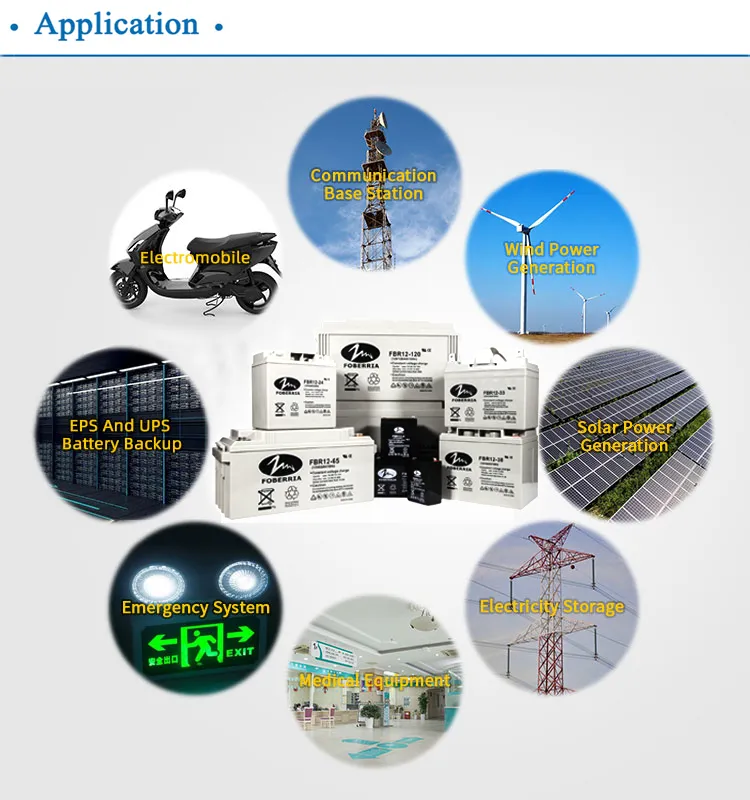

> Applications

  • Solar and wind energy storage system
  • EPS and UPS battery backup
  • Signal system, emergency lighting, security system
  • Telecommunication Equipment
  • Power source for portable devices or tools

> Specification

Battery Specification
Battery Model No. LFPG1240
Nominal Voltage 12V
Capacity (25ºC) 10HR (10.8V) - 40Ah 5HR (10.5V) - 34.5Ah
1HR (9.60V) 24.2Ah
Max Charging Current: 8.0A / Max Discharging Current: 400A (5sec.)

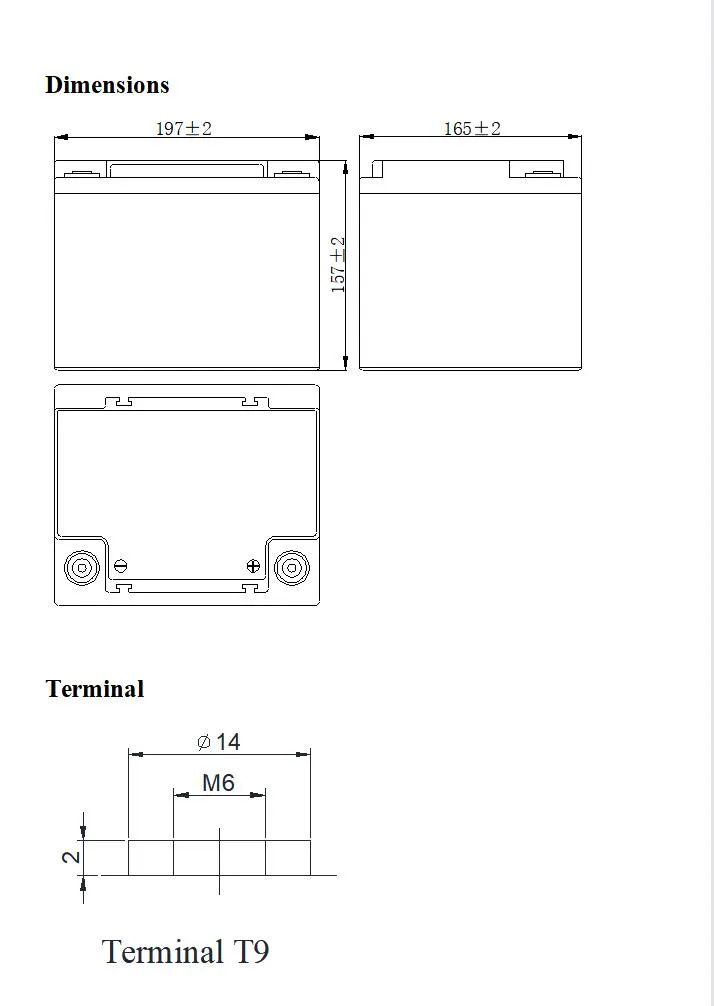

Dimensions Length: 197±2mm Width: 165±2mm
Height: 148±2mm Total Height: 157±2mm
Approx. Weight 12.8kg (28.2lbs)±4%
Terminal Type T9 (Copper)
Designed Floating Life (20ºC) 15 Years

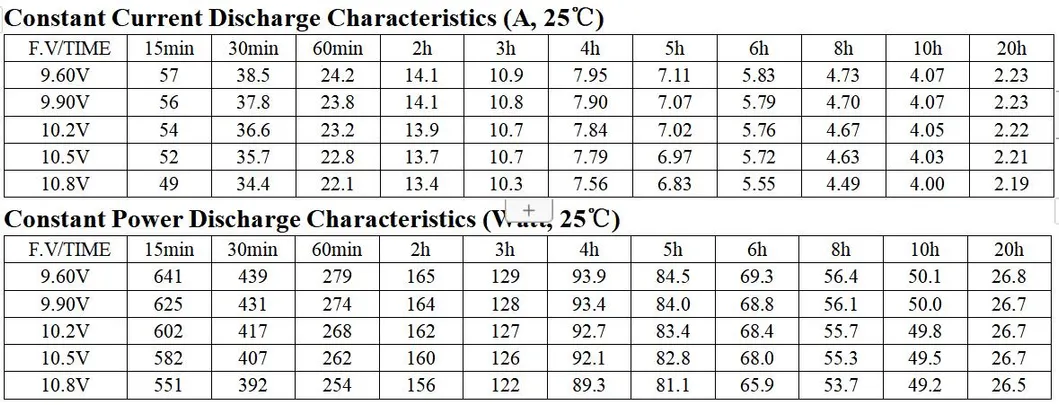

Data Characteristics

Note: The above characteristics data can be obtained within three charge/discharge cycles.

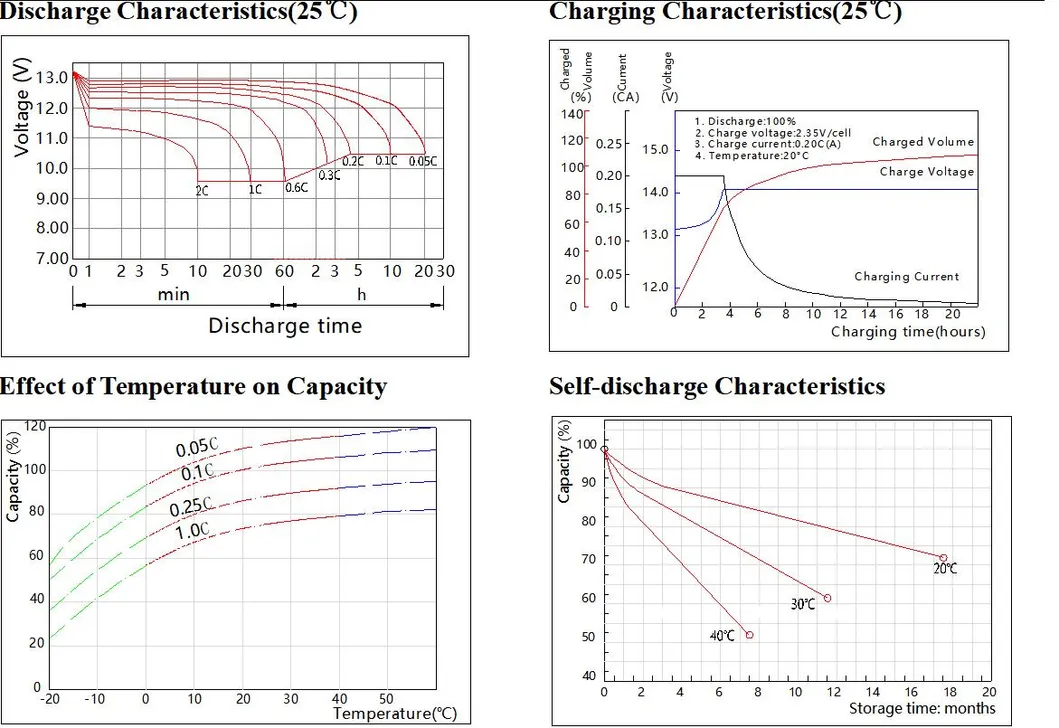

Performance Chart 1

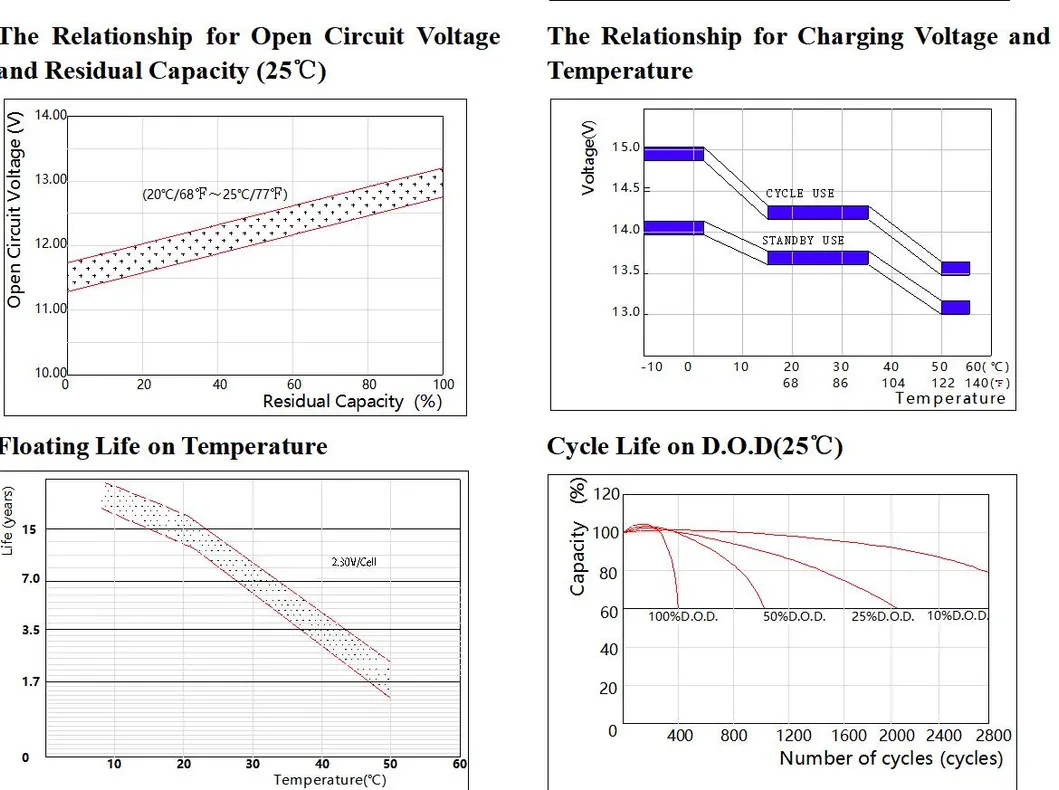

Performance Chart 2
🏗️ Construction

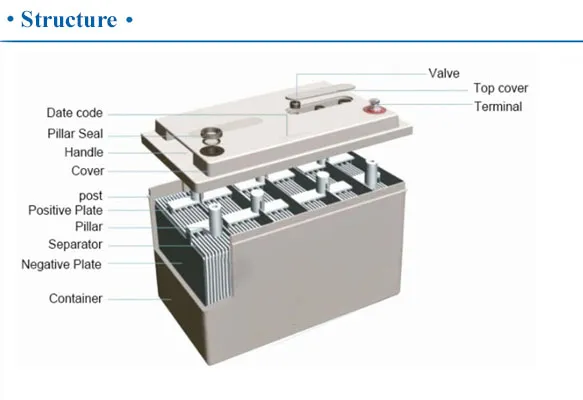

Battery Construction
🏭 Workshop Scene

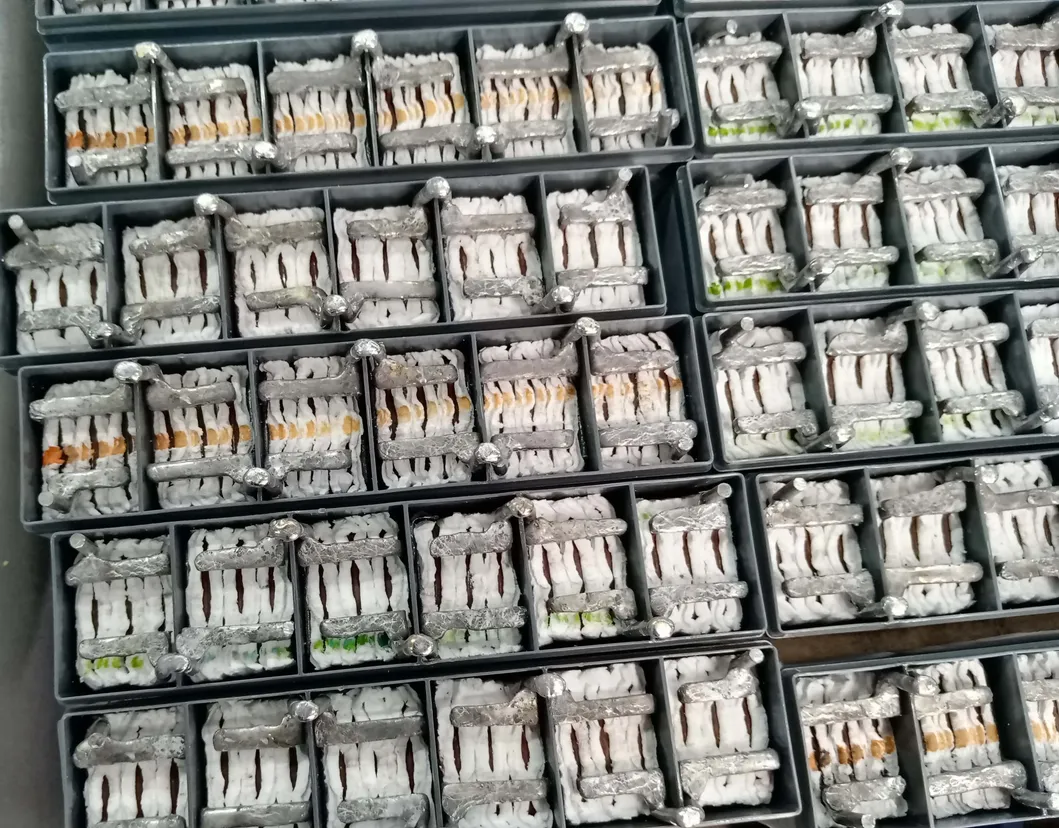

Workshop 1

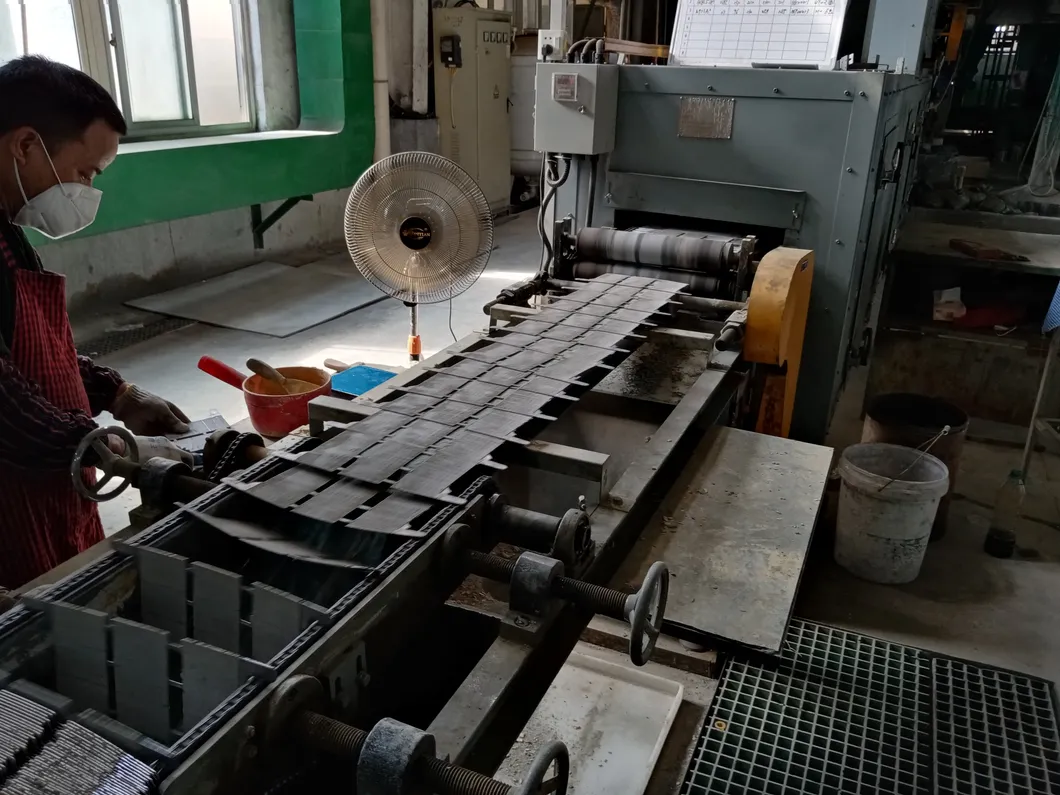

Workshop 2

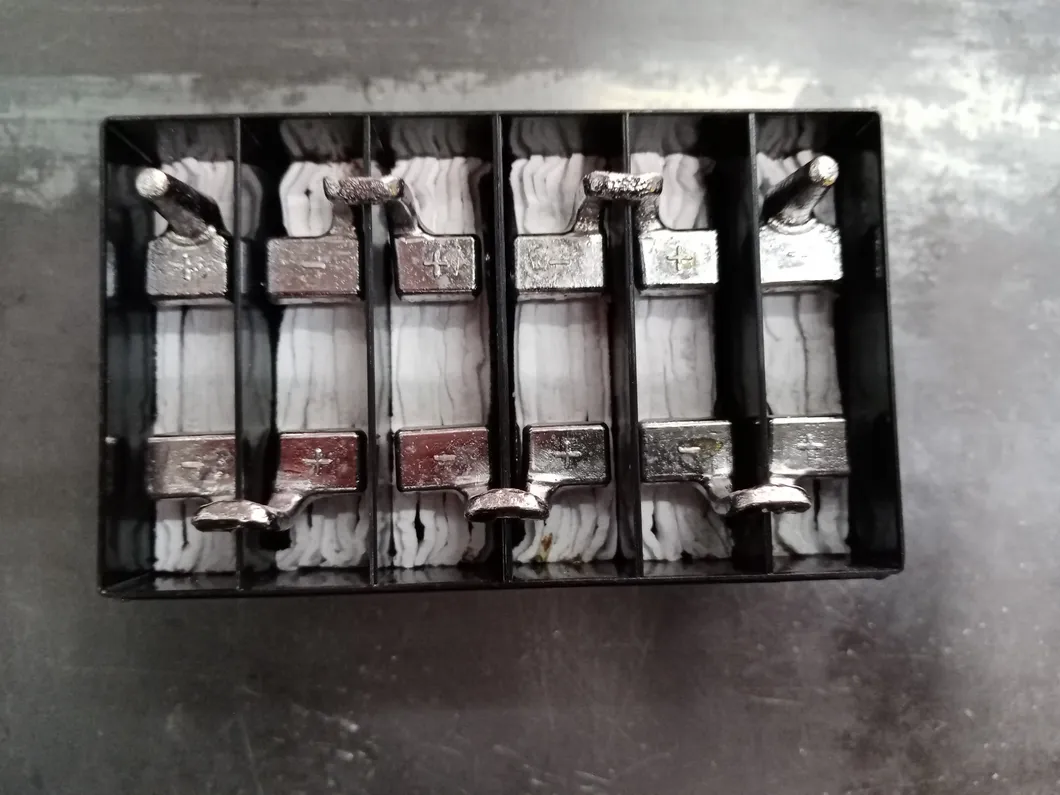

Workshop 3

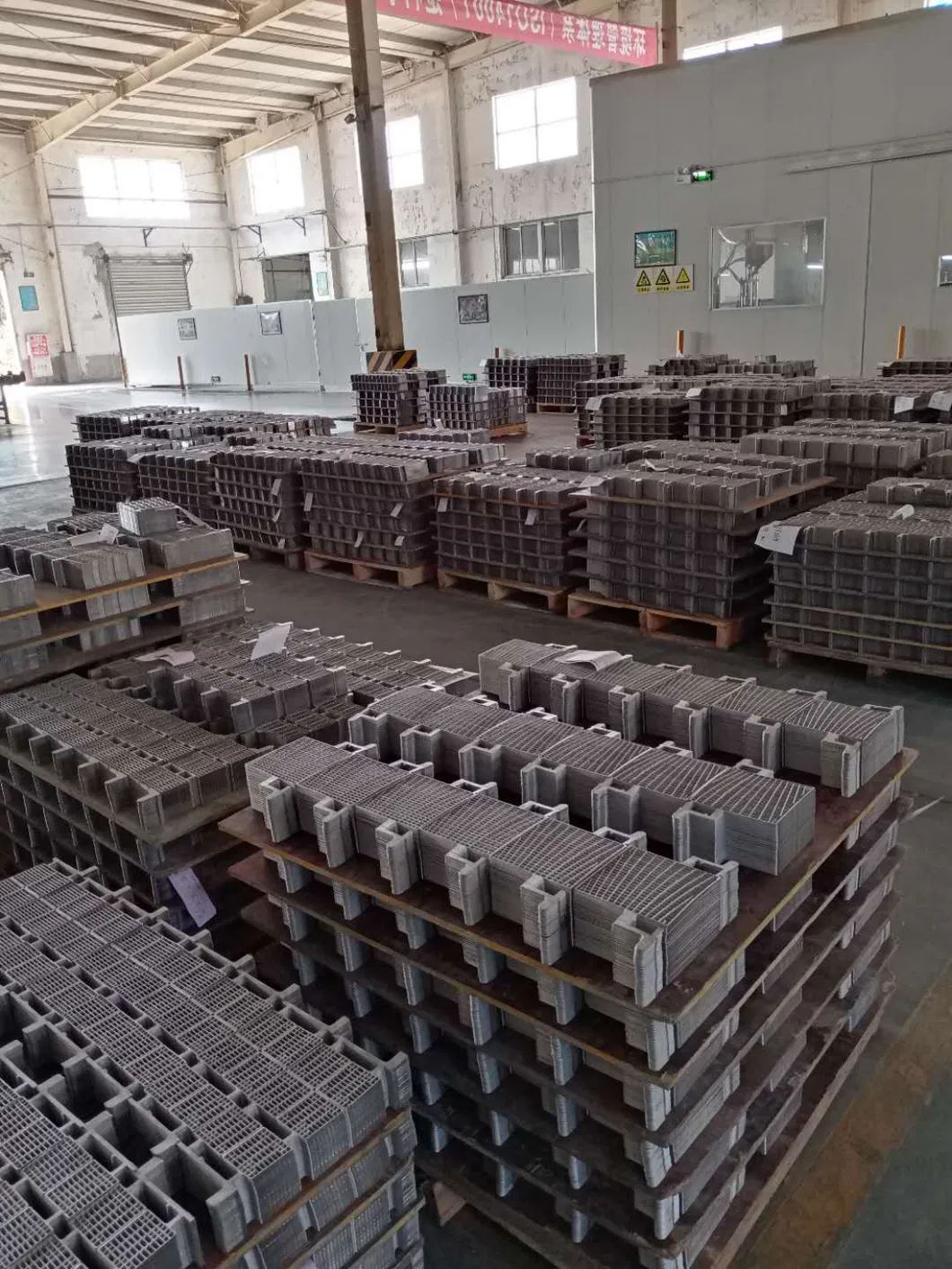

Production 1

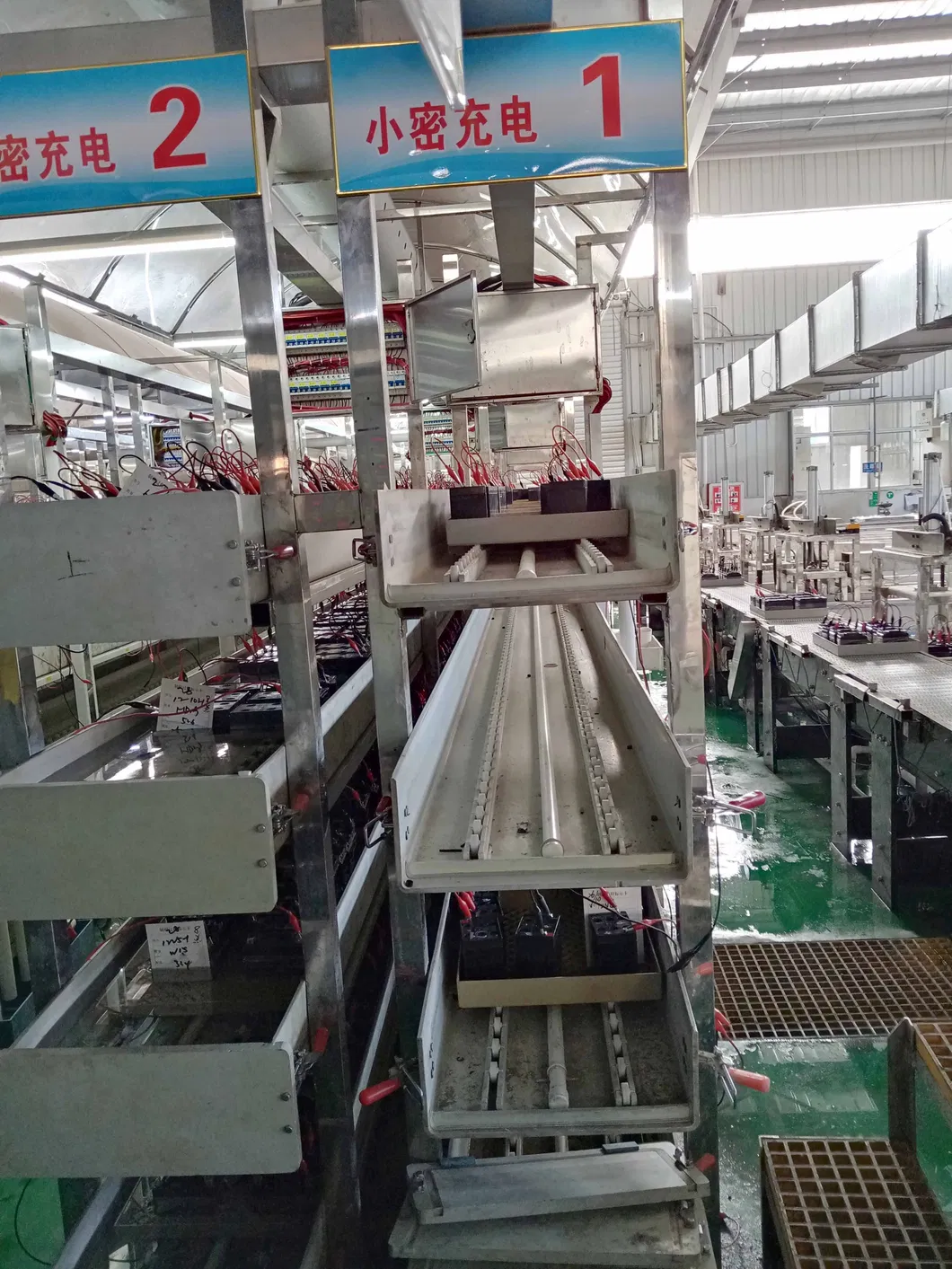

Production 2

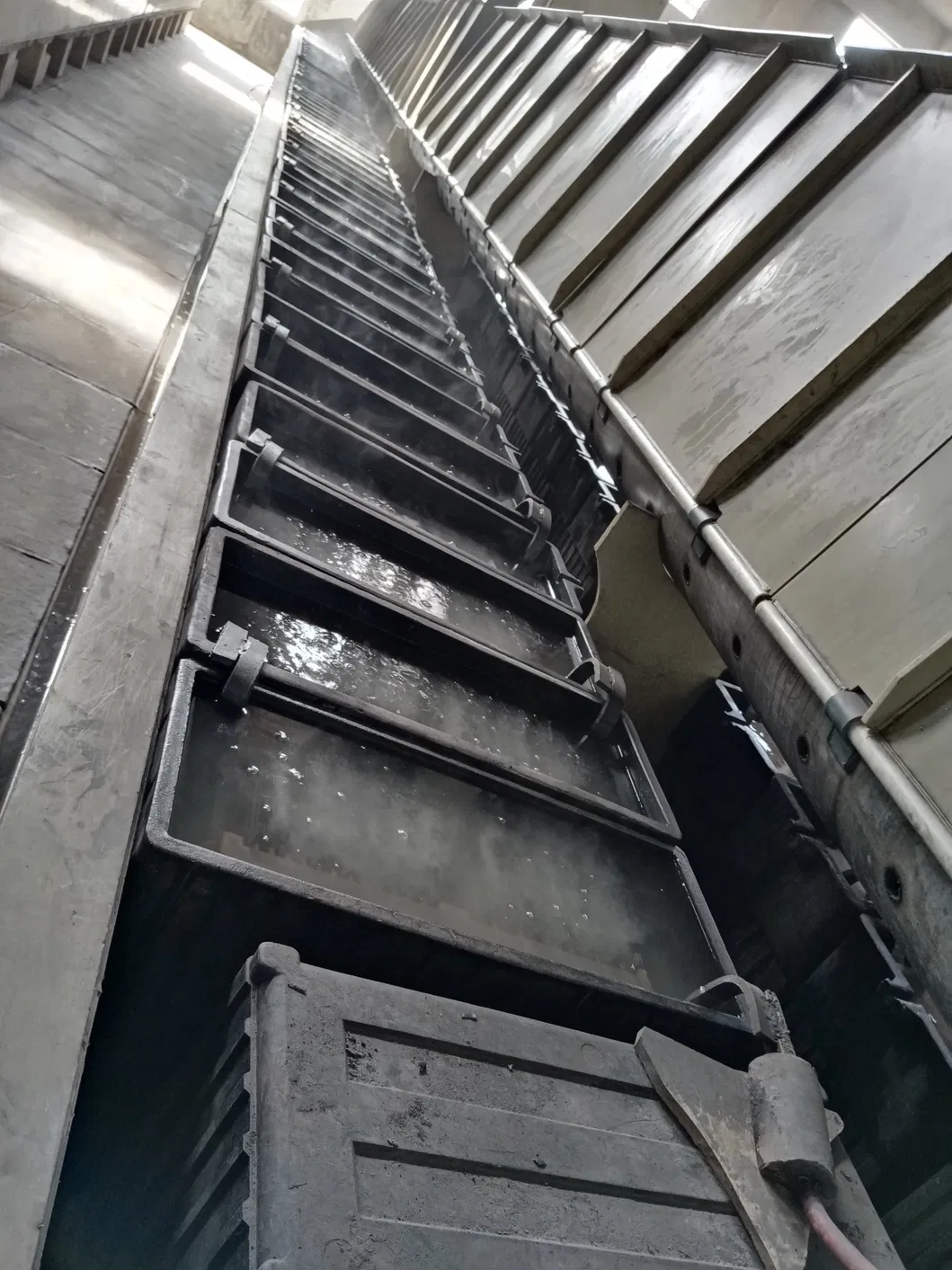

Production 3

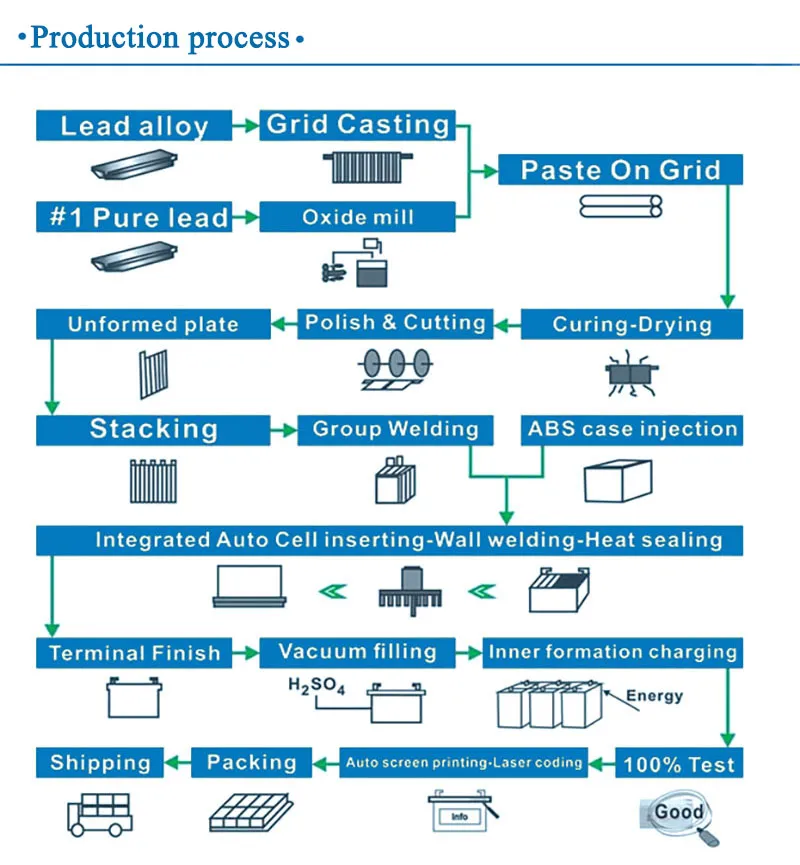

Testing 1
Testing 2
Certification
❓ FAQ
Q1: How to choose the right battery?
A1: Tell us your demand, then our sales will recommend a suitable battery for you.
Q2: Do you have any MOQ limit?
A2: Yes, we have MOQ for mass production, it depends on the different model numbers. Sample orders are available for checking.
Q3: Is it OK to print my logo on the product?
A3: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q4: What certificates does your company have?
A4: ISO 9001, ISO 14001, OHSAS 18001, CE, IEC 61427 test report, Patent for gel technology and other honors.
Q5: What is your warranty time for VRLA battery?
A5: It depends on battery capacity, depth of discharge, and usage. Please contact us for accurate information based on detailed requirements.
Q6: How about the delivery time?
A6: About 7 days for stock products, around 20 days for half container products, and 30 days for 20ft full container products.
